Plastim

Fan with filter 850 (1200) m3/h, 325x325, 230V 50/60Hz IP54 PTF5000 Plastim

In stock - 13 items available
SKU: PTF5000
€297,00 with VAT

Payment by card online - after completing your order, you will be directed to the payment gateway, payment confirmation will be sent to your email.

COD – you make the payment by money order to the driver of the transport company

By bank transfer - no later than the next business day, you will receive an advance invoice by e-mail, in which you will find the account number, which you will enter when making the payment.

By invoice – this payment option is available to partners who have signed a general agreement with our company.

​If you want to use the last 2 methods, call our manager and he will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, there is no fee for returning the goods.

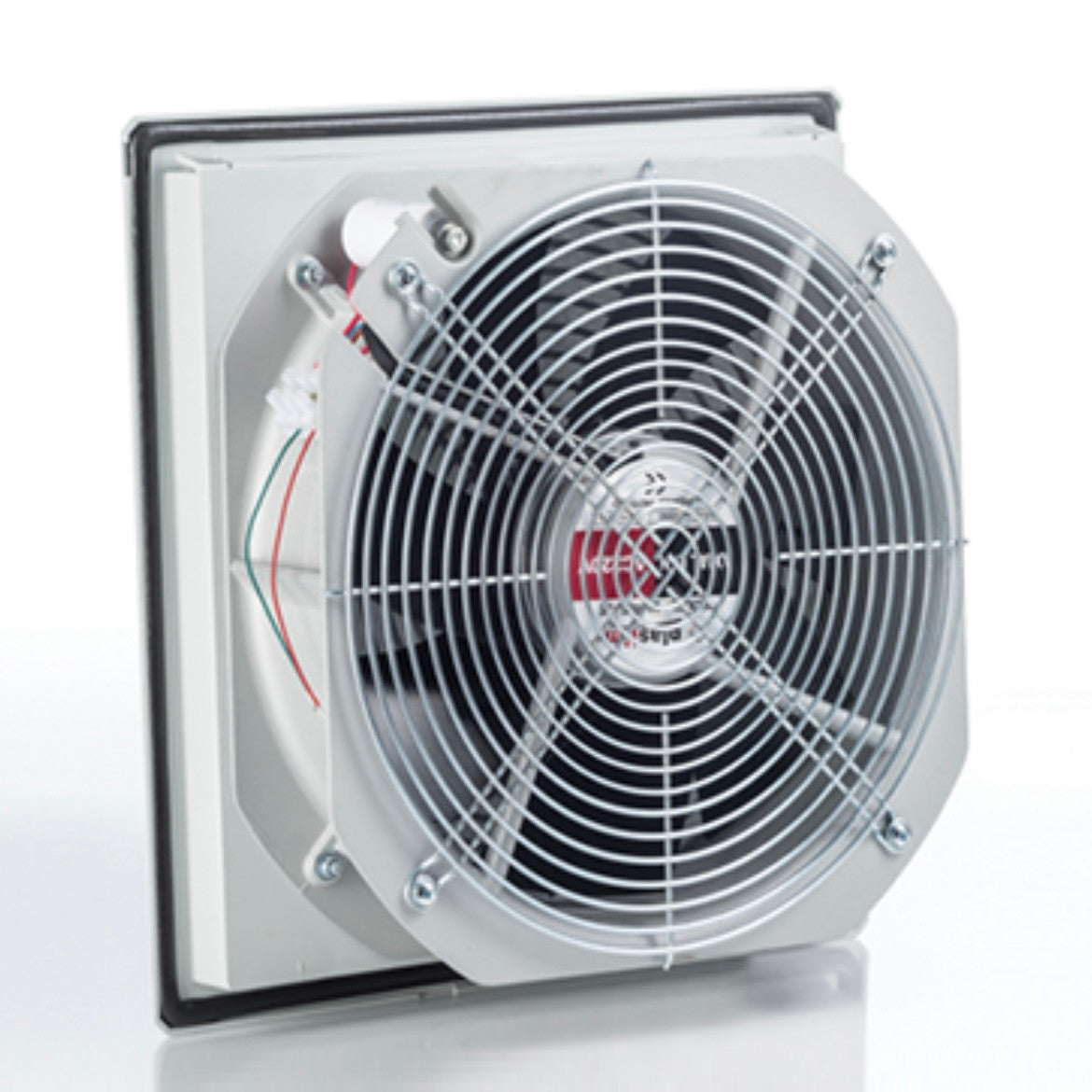

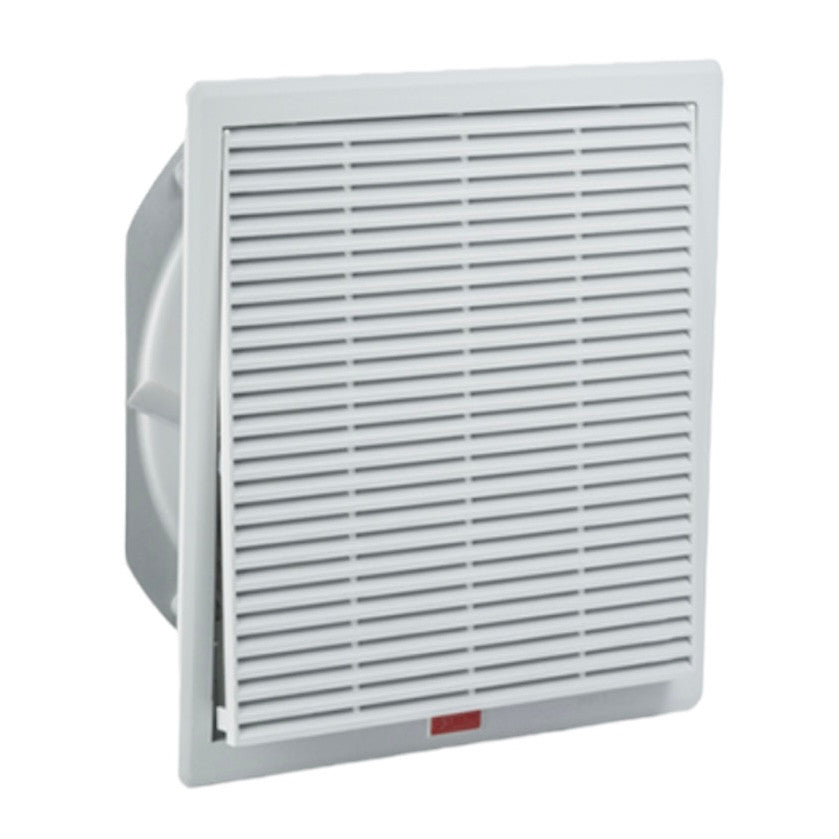

325x325 mm ventilation grille with fan and filter, designed for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF5000, manufacturer Plastim (Turkey)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, slot machines, automation cabinets, control panels, gas stations. Usually mounted on the side walls of boxes to maintain IP.

  • External dimensions: 325x325x111 mm
  • Installation dimensions: 291x291 mm
  • Volume flow: 850 (1200) m3/h
  • Noise level: 65 (68) dB(A)
  • Bearing: ball bearing
  • Operating voltage: 220-230 V AC, 50/60 Hz
  • Current consumption: 0.35 (0.72) A
  • Rated power: 110 (140) W
  • Electrical connection: 4-pole terminal
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection degree: IP54
  • Plastic material: UL94 V0 ABS Flame Retardant
  • Sealant: Polyurethane sealant
  • Color: RAL 7035 (on request - RAL 7032)
  • Weight: 4.12 kg
  • Installation: quick attachment

The ventilation grille has a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.

To ensure automatic air exchange and temperature maintenance with this fan, you need a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
