PTHVT Double/double bimetallic thermostat NC+NO switching, range 0-60 °C Plastim

Barcode: PTHVT

Regular price: €14,44
Regular price
Sale price: €14,44
Unit price: per

excl. VAT: €12

106 in stock

Product variants

Description
Payment methods
Warranty

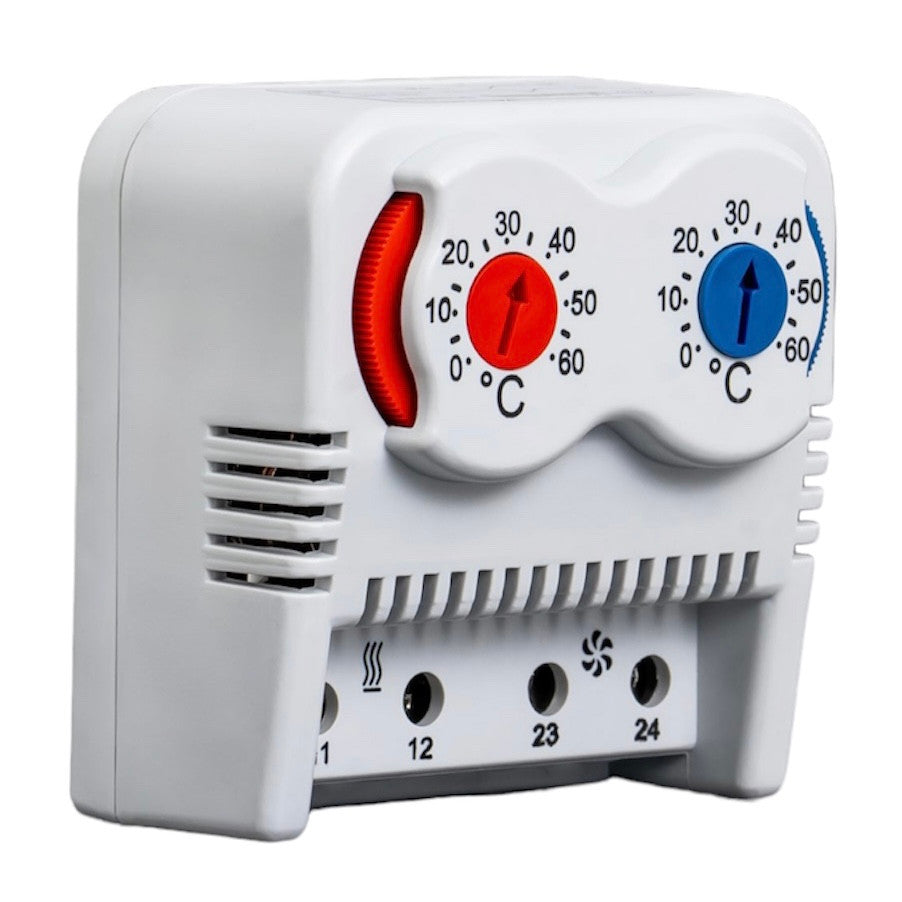

Double bimetallic thermostat PTHVT Double thermostat NC+NO (cooling/heating), changeover, 0-60 °C, bimetallic

Single thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. electrical connection with 4 terminals 2.5 mm2. mounting method on 35 mm DIN rail, cross rails, on mounting plate.

Used for connecting both fans (coolers/air conditioners) and heating elements - heating elements, panel heaters, heated floors, heating cables, heat fans.

Characteristics	PTHVT
Contact type	NC+NO
Setting range	0-60 / 0-60 °C
Potentiometer color	Red/blue
250 V AC / 120 V AC	10 (2) 15 (2) A
Sensor type	Bimetallic
Contact type	Clampable
Operating time	> 100,000
Electrical connection	4-pole terminal, screw terminals
Plastic material	UL94 V0 ABS flame retardant
Degree of protection	IP20
Operating temperature	-25 / +80 °C
Storage temperature	-45 /+80°C
Installation	DIN rail 35 mm
Dimensions HxWxD	65x59x42 mm
Weight	80 g
