Bimetallic thermostat NO switching, setting range 0-60 °C, PTVT

Barcode: PTVT

Regular price: €8,40
Regular price
Sale price: €8,40
Unit price: per

excl. VAT: €7

Out of stock

Product variants

Description
Payment methods
Warranty

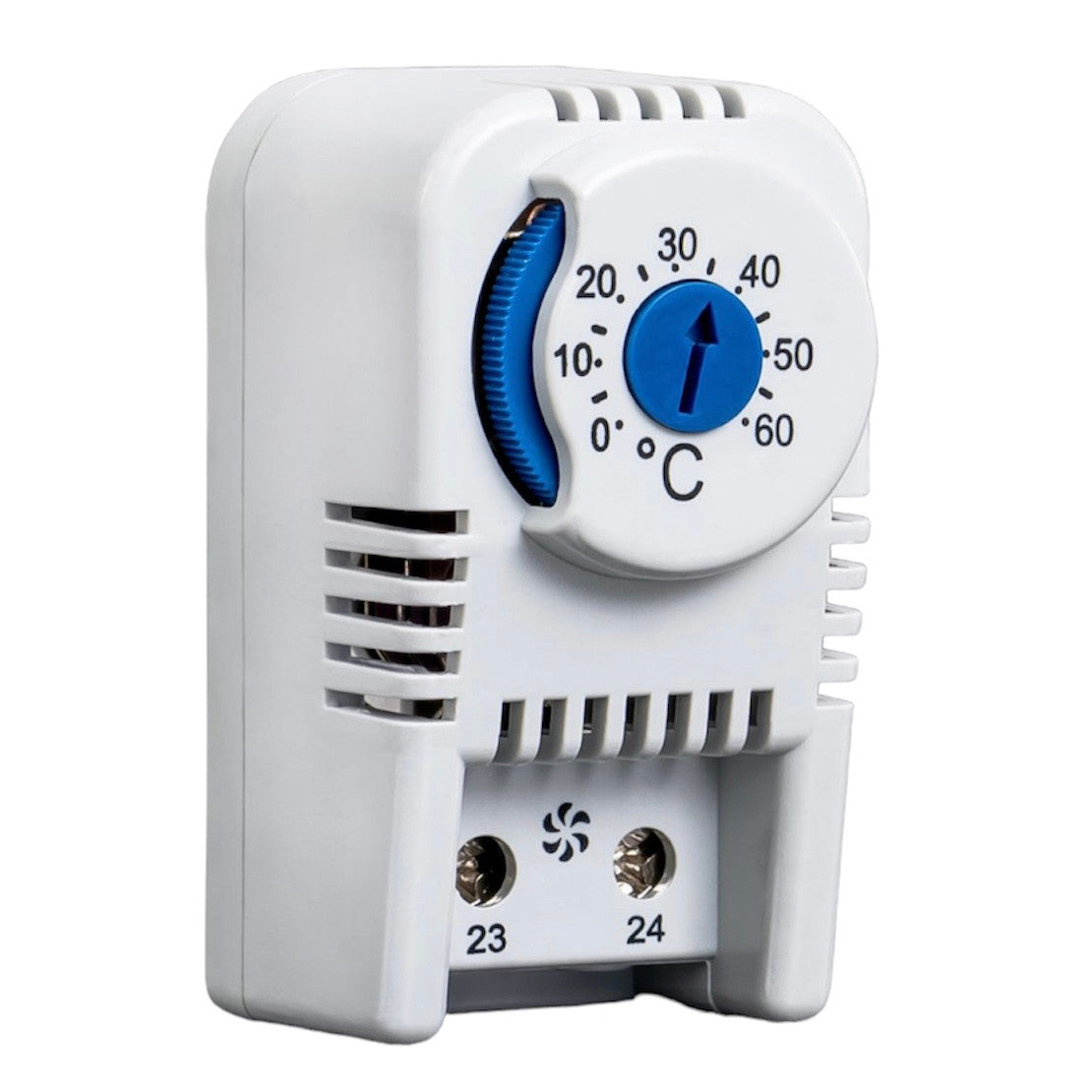

Panel thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with integrated air temperature sensor, designed for mounting on a DIN rail, for connecting a fan or signaling when the temperature rises above a set level, normally one open contact (NO contact) PTVT, 2p, screw terminals, Plastim bimetallic thermostats.

These thermostats are used in systems where the set temperature is maintained using cooling elements, such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals and other equipment installed outdoors or in unheated premises.

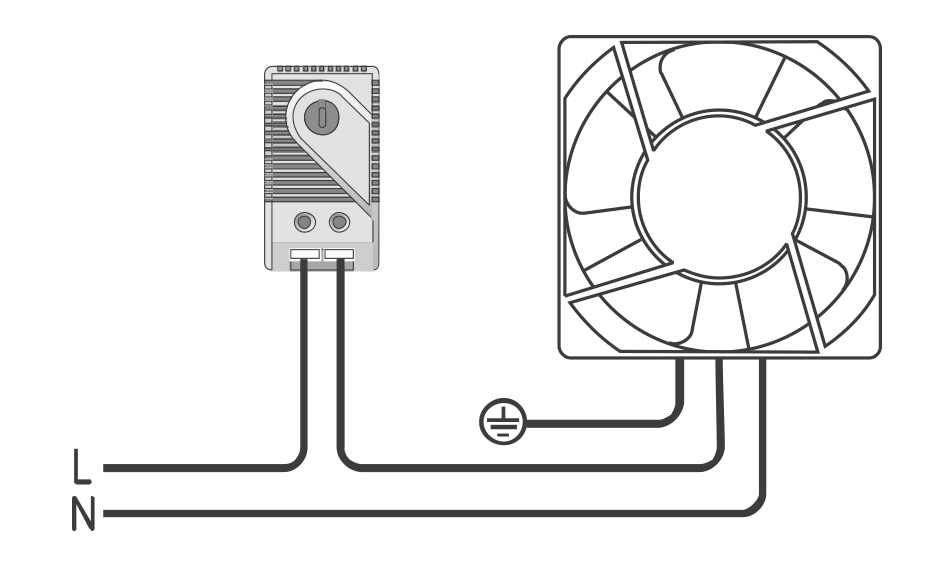

They are used to connect fans, coolers, and/or air conditioners.

Characteristics	PTHT
Contact type	NO
Setting range	0-60°C
Potentiometer color	Blue
250 V AC / 120 V AC	15 (2)A
Sensor type	Bimetallic
Contact type	Snap-action
Operating life	> 100,000
Electrical connection	2-pole terminal, screw terminals
Plastic material	UL94 V0 ABS flame retardant
Degree of protection	IP20
Operating temperature	-25 / +80 °C
Storage temperature	-45/+80°C
Installation	DIN rail 35 mm
Dimensions HxWxD	61x34x38 mm
Weight	45g
