Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

Barcode: PTF1500

Regular price: €34,00
Regular price
Sale price: €34,00
Unit price: per

excl. VAT: €28

98 in stock

Product variants

Description
Instructions
Payment methods
Warranty

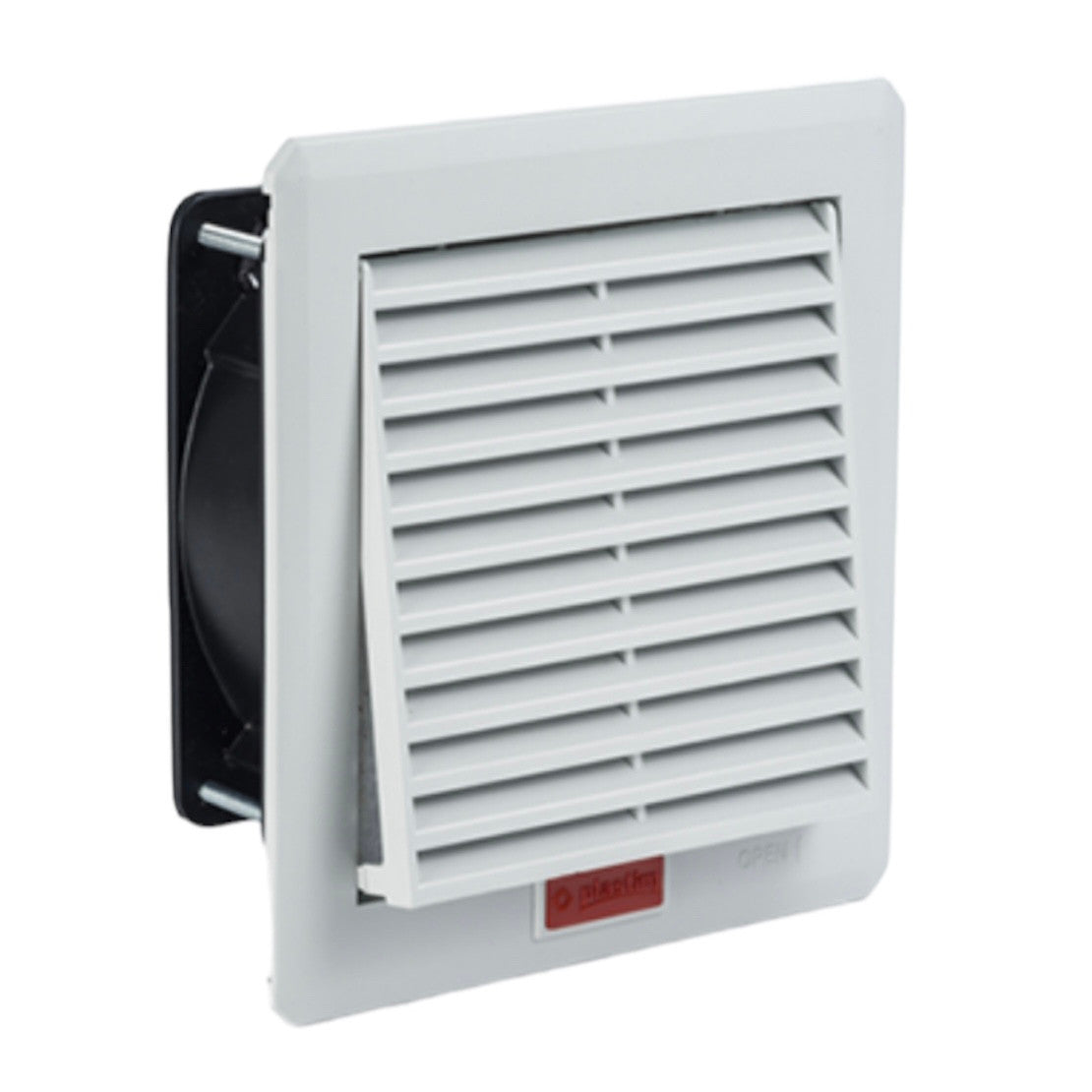

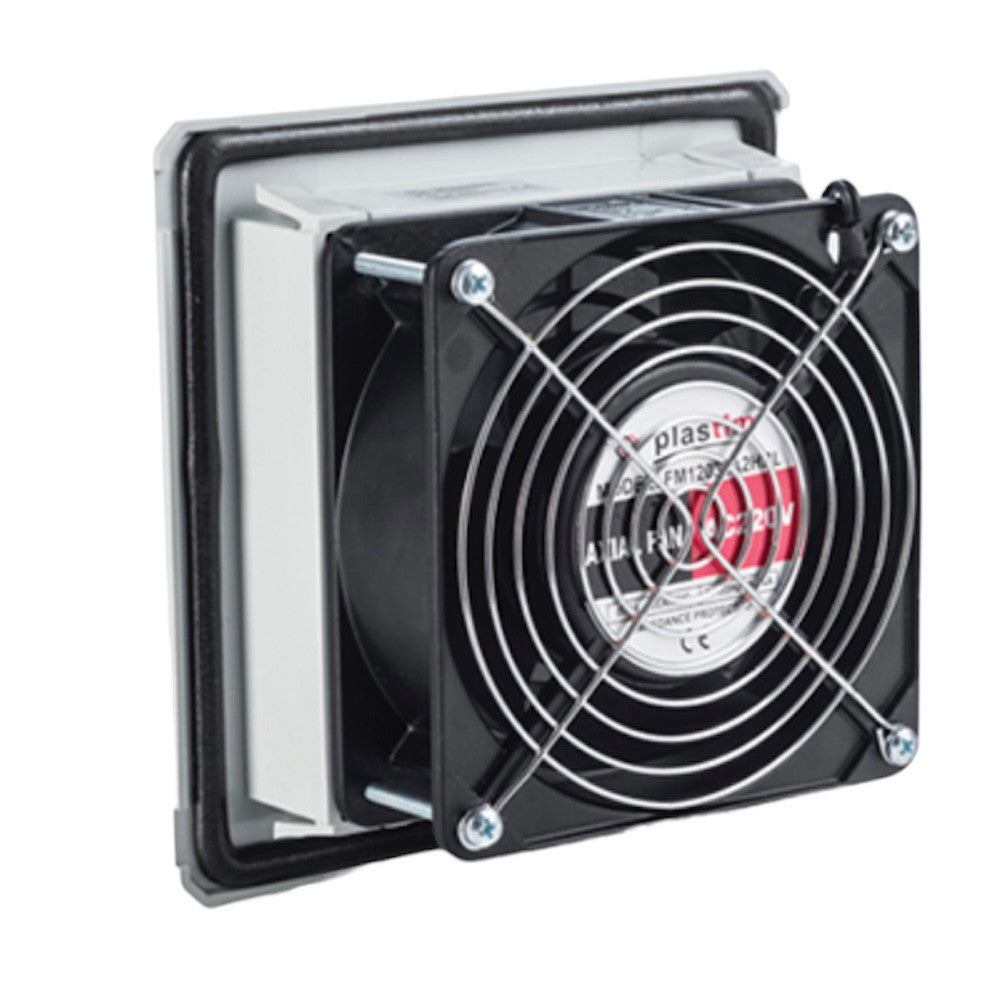

160x160 mm ventilation grille with fan and filter for mounting in an electrical panel, automation cabinet, ATM, or gaming terminal. PTF1500, manufacturer Plastim (Turkey)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Typically mounted on the side walls of enclosures to maintain IP.

External dimensions: 160x160x69 mm
Mounting dimensions: 125x125 mm
Volumetric flow: 100 (140) m3/h
Noise level: 42 (46) dB(A)
Bearing: Ball bearing
Operating voltage: 220-230 V AC, 50/60 Hz
Current consumption: 0.14 (0.13) A
Rated power: 26 (23) W
Electrical connection: Lead wire
Flow direction: External to internal (reversible)
Operating temperature: -10/+70 °C
Protection degree: IP54
Plastic material: UL94 V0 ABS Flame retardant
Seal: Polyurethane seal
Color: RAL 7035 (on request - RAL 7032)
Weight: 0.68 kg
Installation: Quick fastening

To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices are available on our website.

Manual

https://files.principalelektrik.org/Filter%20FANS%2030m3%20%28%20SKU%20PFI1000%2C%20SKU%20PFI1500%2C%20SKU%20PFI2000%2C%20SKU%20PFI2500%2C%20SKU%20PFI3000%2C%20SKU%20PTF1000%2C%20SKU%20PTF1000T%2C%20SKU%20PTF1500%2C%20SKU%20PTF1500T%2C%20SKU%20PTF2500%2C%20SKU%20PTF2000%2C%20SKU%20PTF3000%2C%20SKU%20PTF3500%2C%20SKU%20PTF4500%2C%20SKU%20PTF5000.pdf
