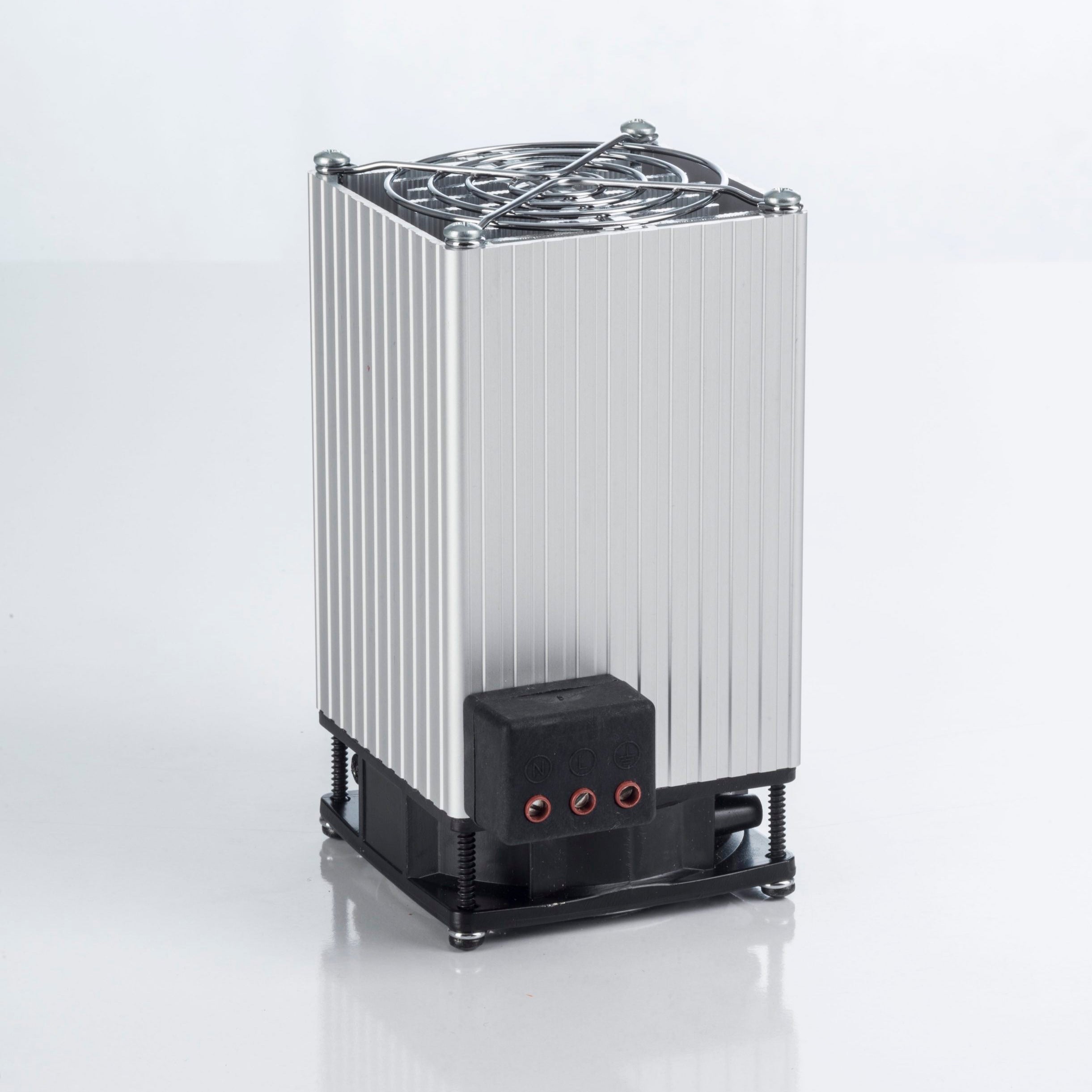

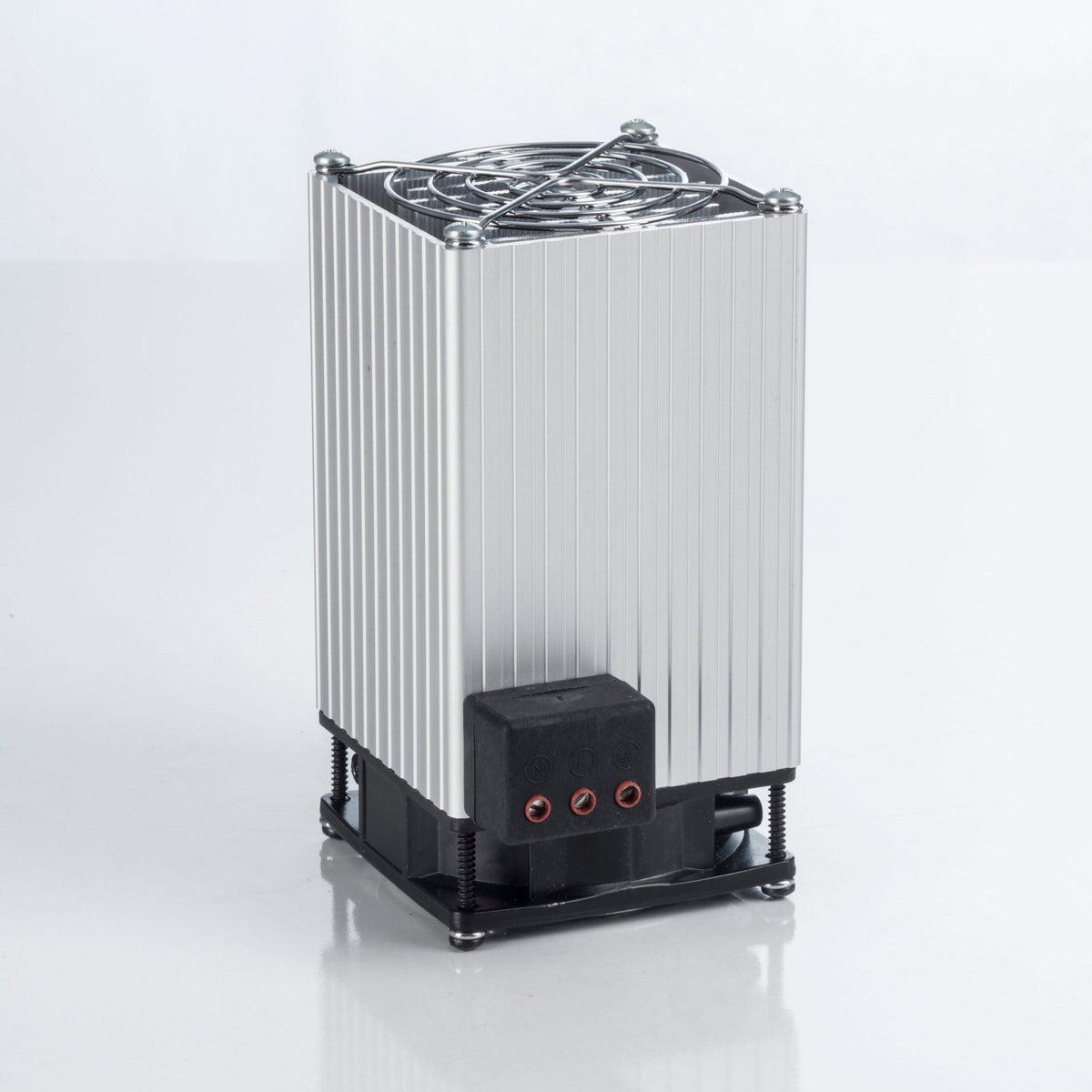

Resistive commutated heater with fan 250W, PFHT250, PLASTIM

Barcode: PFHT250

Regular price: €106,00
Regular price
Sale price: €106,00
Unit price: per

excl. VAT: €88

15 in stock

Product variants

Description
Payment methods
Warranty

Electric ("Resistance heater", "After heater") heater for distribution panels with fan, with anodized aluminum radiator and surge protection, for DIN rail mounting, 250 W, 220/230 V AC, PFHT250, Plastim - made in Turkey.

Heating power: 250 W
Operating voltage: 220/230 V AC, 50/60 Hz
Max. current: 1.2 A
Resistance heater
Axial fan: 80x80x25mm 35m3/h
Overload protection: electronic thermal overload relay
Electrical connection: 3-pole N-L-E terminal
IEC protection class: Class II
Degree of protection: IP20
Operating temperature: -25 / +70 °C
Storage temperature: -25 / +70 °C
Heat sink: aluminum profile, anodized
Mounting: 35 mm DIN rail
Mounting position: Best efficiency in vertical position
External dimensions: 152x80x110 mm
Weight: 0.98 kg

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more sophisticated temperature controller is required. Both devices can be purchased on our website.
