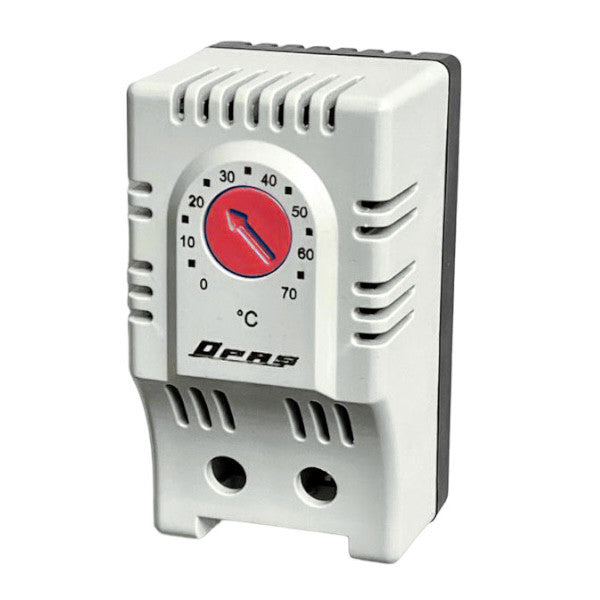

NC bimetallic thermostats / temperature switches, 0-60 °C, DIN rail mounted.bimetallic from OPAŞ
Simple thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. electrical connection with 2 terminals 2.5 mm2. mounting method on 35 mm DIN rail, cross rails, on mounting plate.

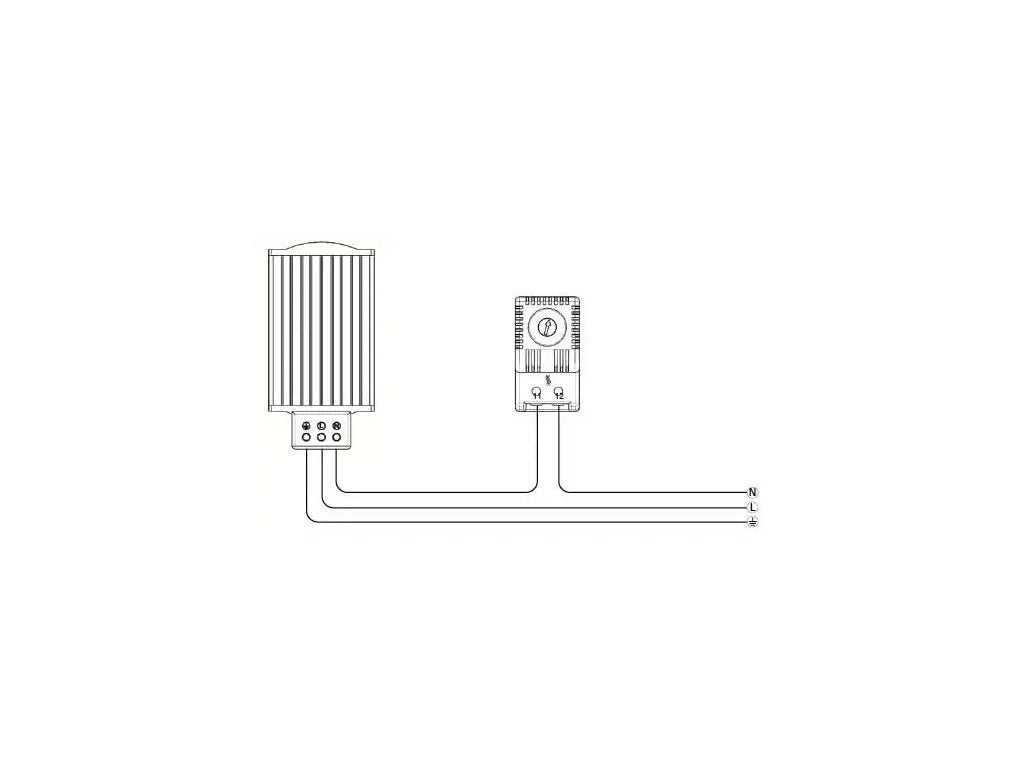

Used to connect heating elements - heating elements, panel heaters, heated floors, heating cables, heat fans.
Characteristics |
PTOT001 |
Contact type |
NC |
Setting range |
0-60°C |
Potentiometer color |
Red |
250 V AC / 120 V AC |
10 (2) A |
Sensor type |
Bimetallic |
Contact type |
Clampable |
Operating time |
> 100,000 |
Electrical connection |
2-pole terminals, screw terminals |
Plastic material |
UL94 V0 ABS flame retardant |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 / +80 °C |
Installation |
35 mm DIN rail |
Dimensions HxWxD |
61x34x38 mm |
Weight |
43g |
