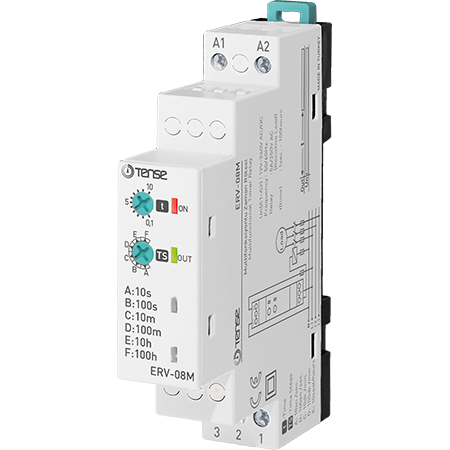

Single-function 12V-240V AC/DC on/off time relay with 1 changeover contact.
A time delay relay is used to switch loads in stages: electric boilers, furnaces, space heaters, etc., thus preventing current surges in the network and tripping of switches due to high overvoltages.
It can also be used to coordinate the activation times of multiple devices in machines, appliances, or other equipment.
Time range:
A - 1-10 sec.
B - 10-100 sec.
C - 1-10 minutes.
D - 10-100 minutes.
Mon - 1-10 p.m.
F - 10-100 hours.

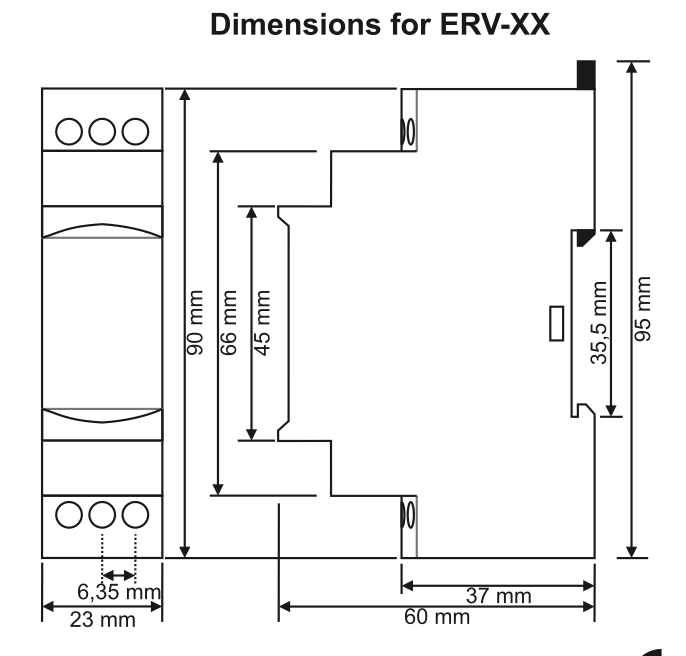

The time relay is mounted on a standard 35 mm DIN rail
