Step switch 0-1-2-3-3-4 degree rotary switch, 1-2 poles, 10-160 A

In stock - 15 items available
SKU: YPT114010
Common price €15,68 with VAT
option
Markas

Step (step) switch 0-1-2-3-4, rotary switch, 1-2 poles, 10-160A, YPT114, manufacturer OPAŞ (Turkey)

  • 10A, 16A, 25A, 32A, 40A, 63A, 100A, 125A, 160A

The 0-1-2-3-3-4 step switch can be used, for example, to select one of three phases and a generator to power single-phase electrical appliances or to activate one of several devices/modes/steps of a processing program, etc.

Step switches are designed for manual switching of low-voltage circuits. They are used to form main and control circuits, to turn on and off electric motors and other low-power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance, as well as high switching and disconnecting capabilities.

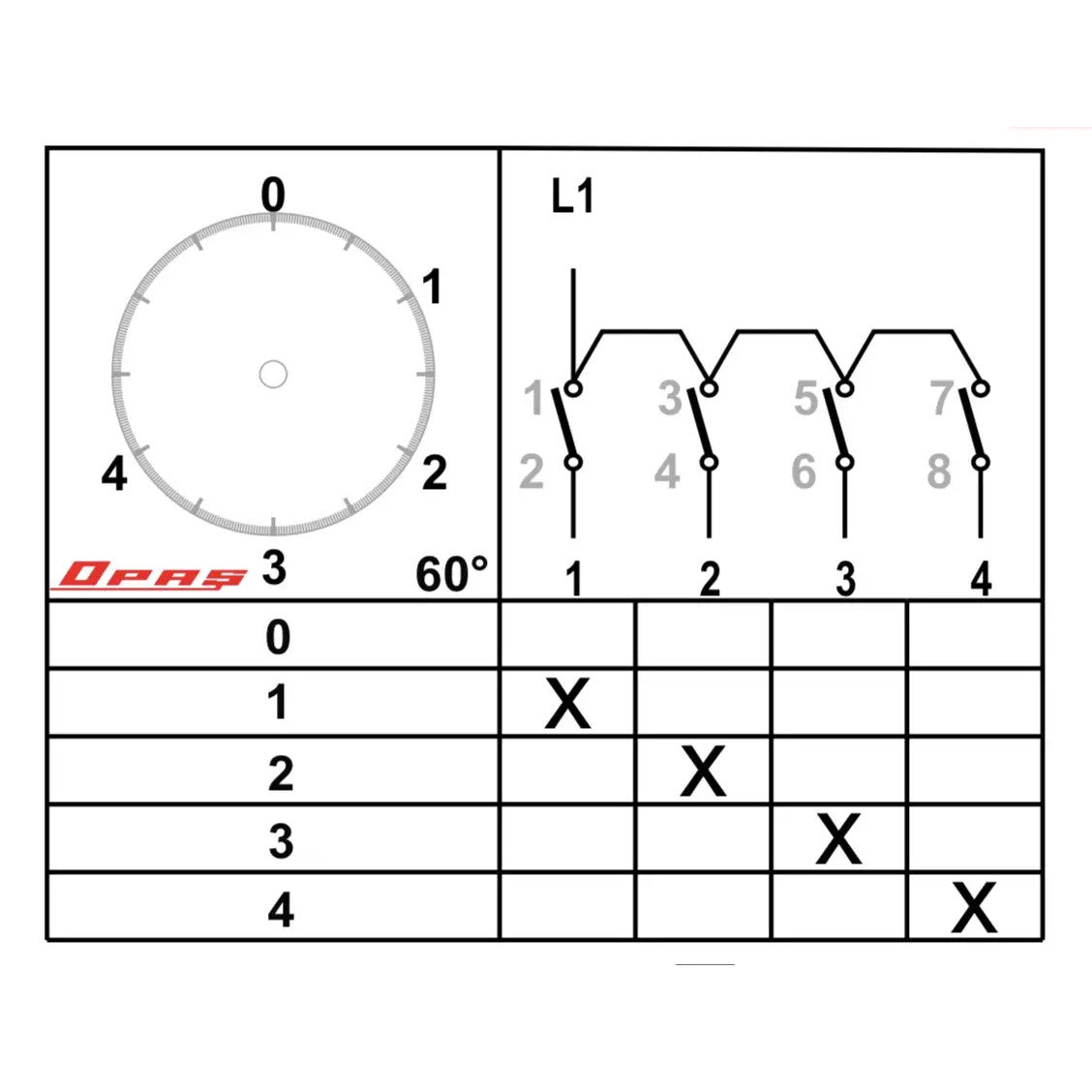

The multi-position scheme 0-1-2-3-3-4 is used to switch between different operating modes of the equipment (movement speed, heating temperature).

Technical specifications:

  • Geared construction.
  • Device type: rotary switch
  • Switching pattern: 0 - 1 - 2 - 3 - 4
  • Number of poles: 1
  • Type: built-in
  • Number of phases: single phase
  • Protection: no
  • Dust and water protection rating: IP20
  • Operating temperature range: -30 to +55 °C
