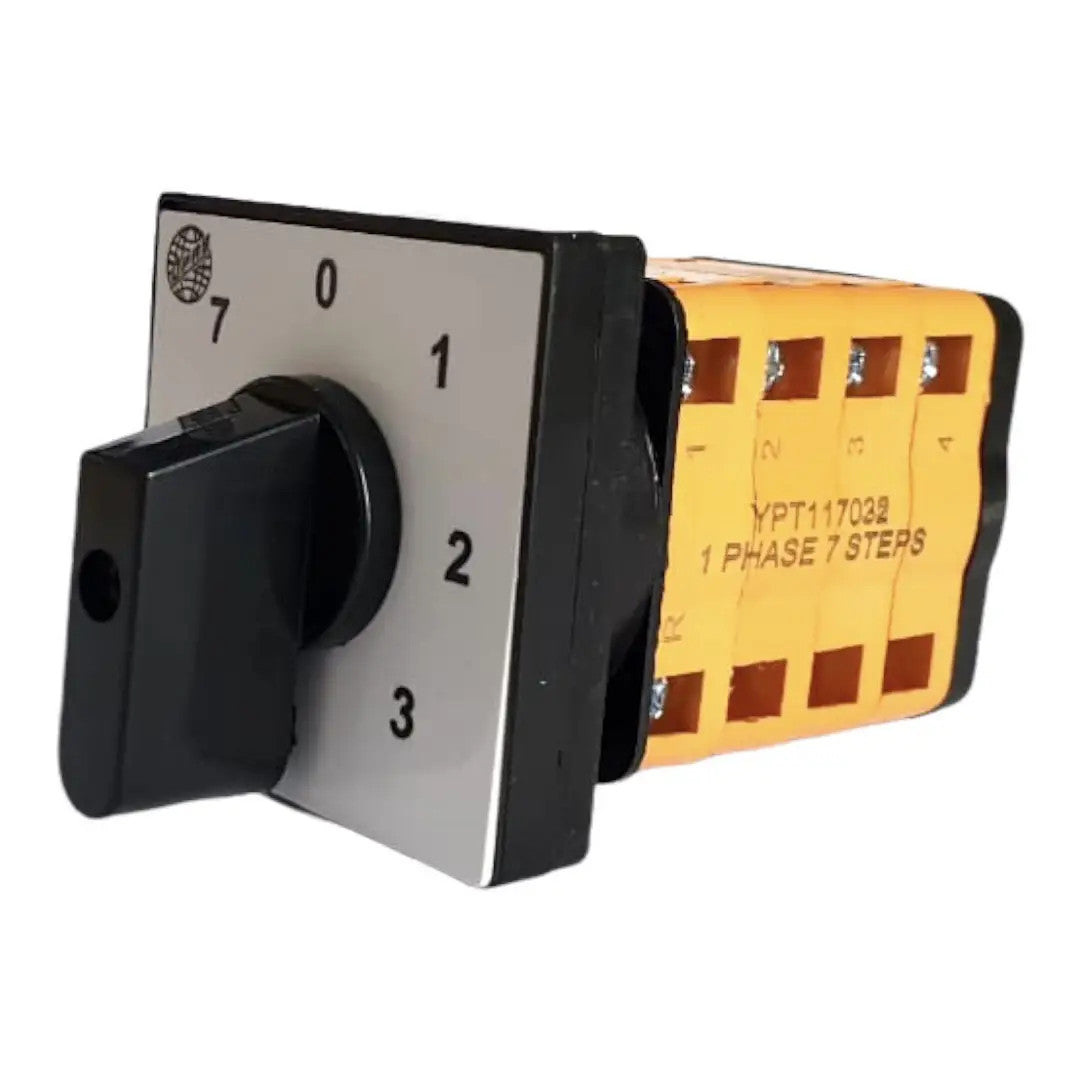

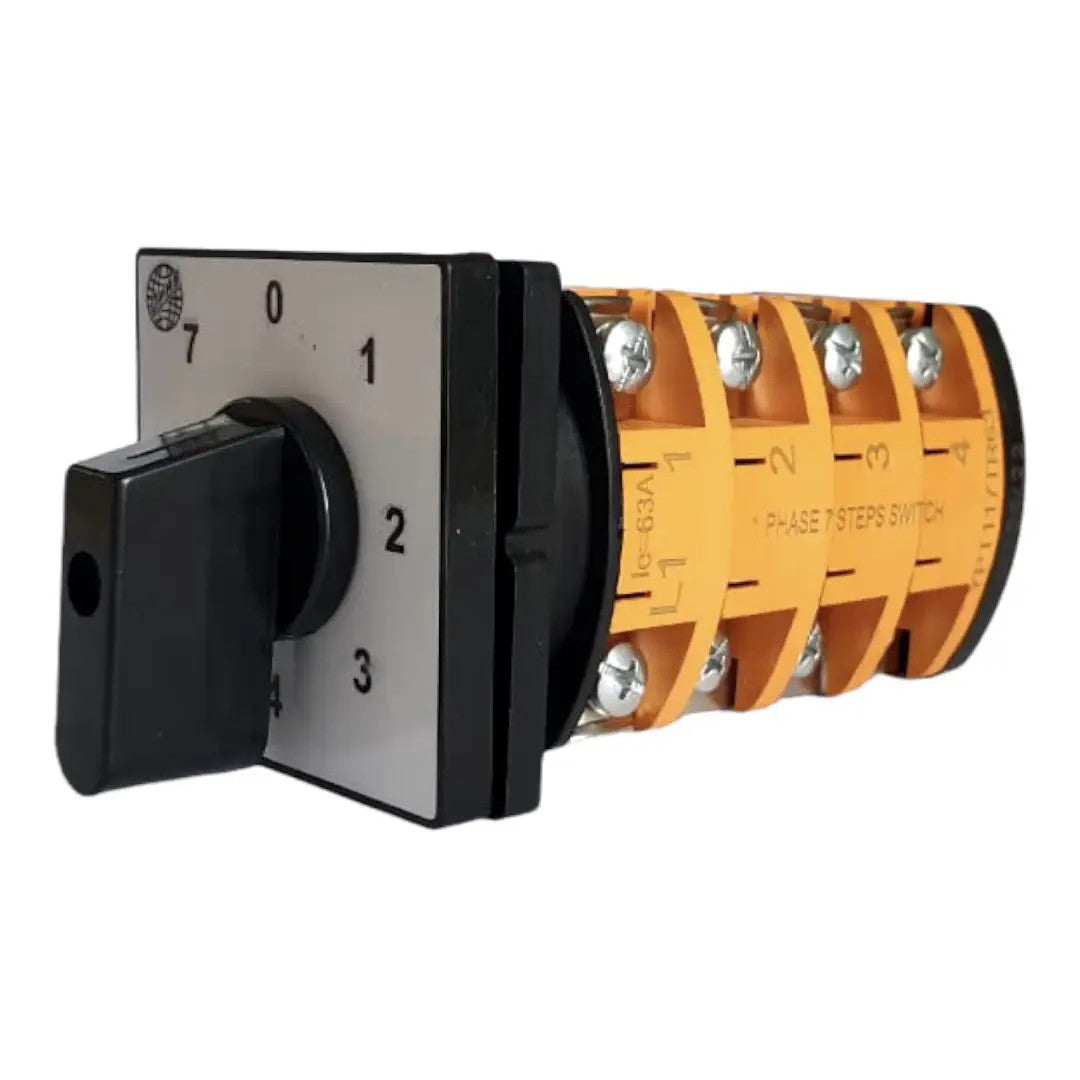

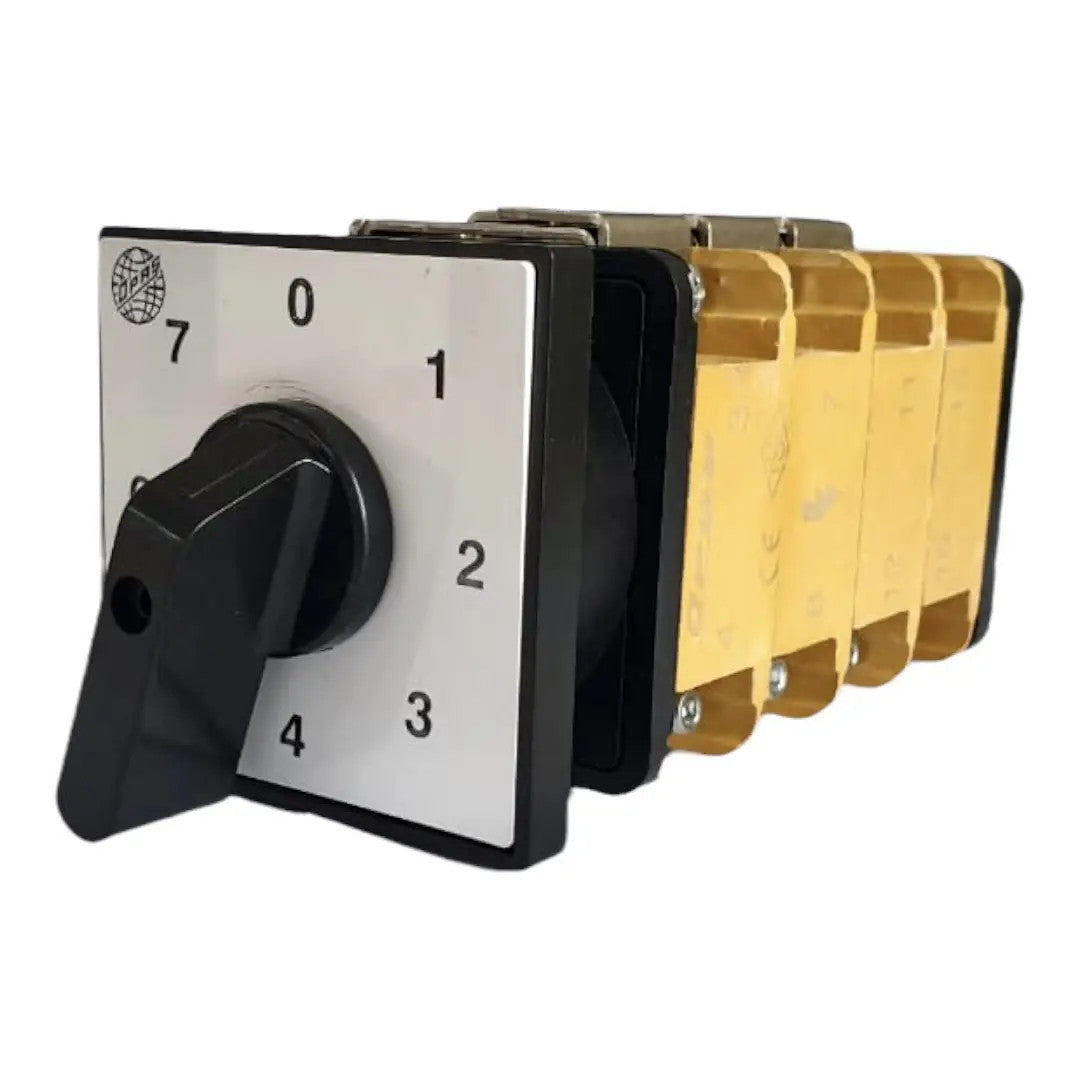

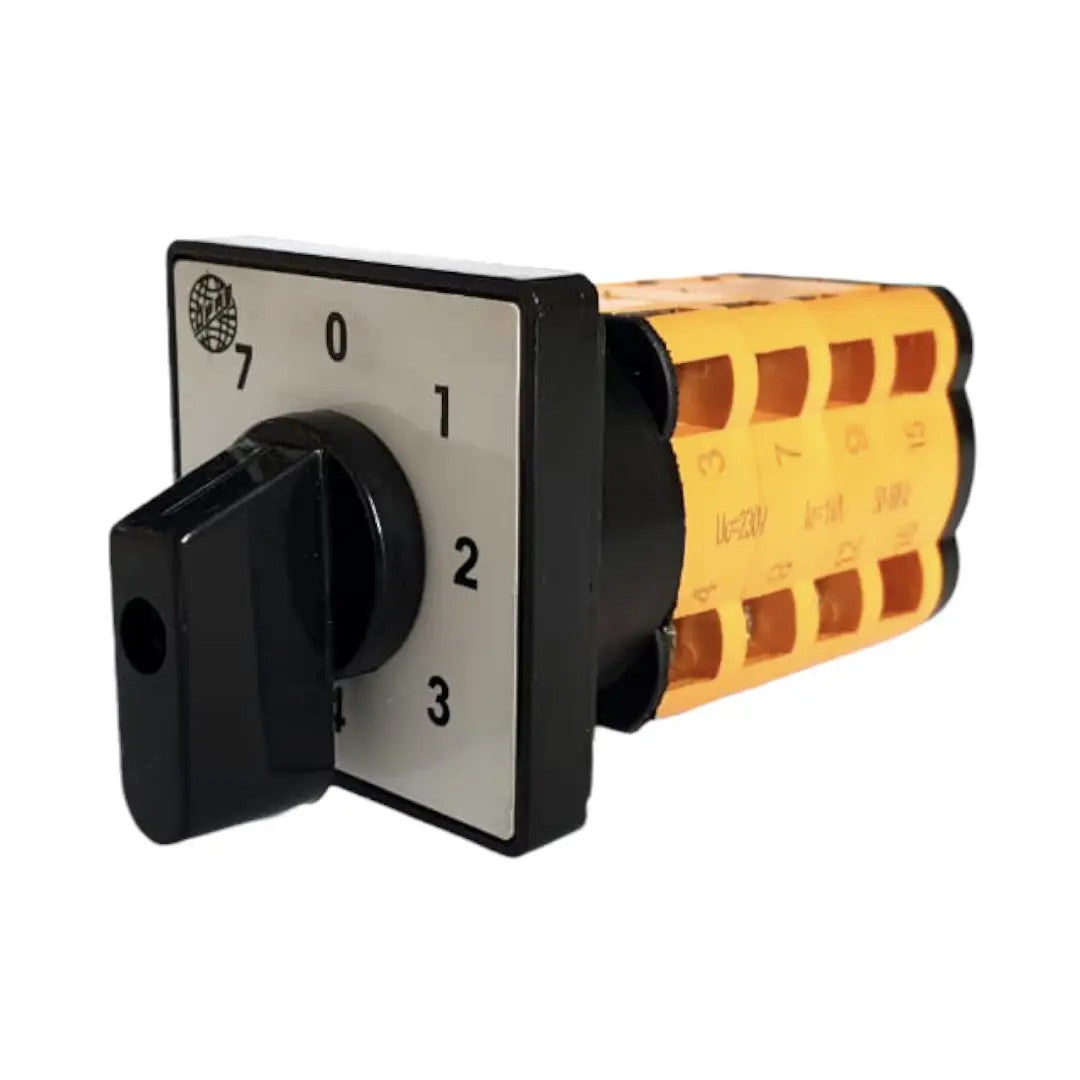

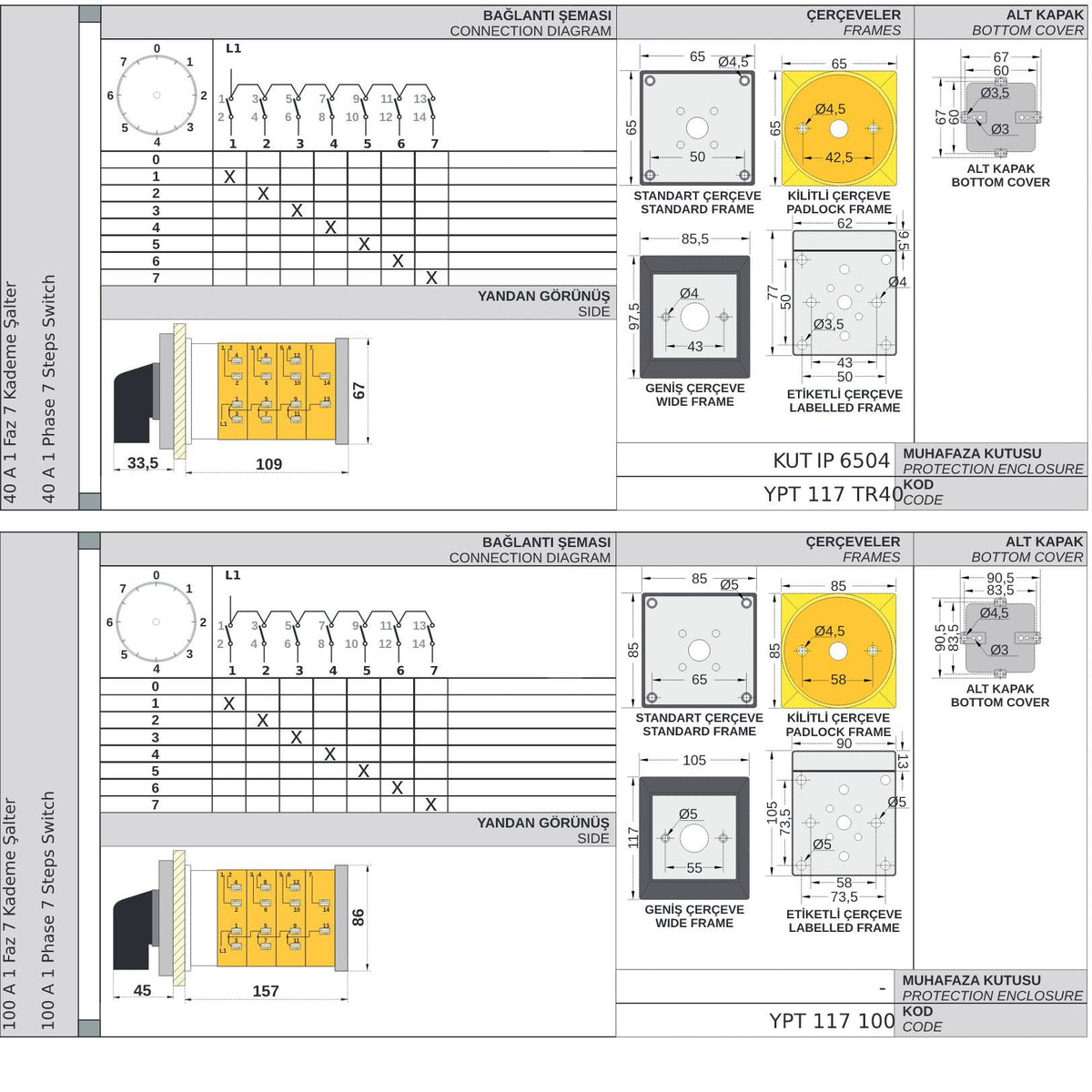

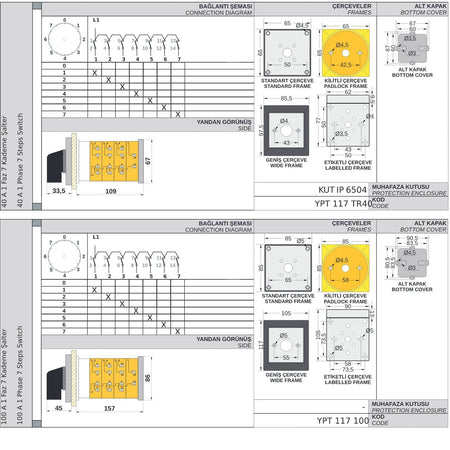

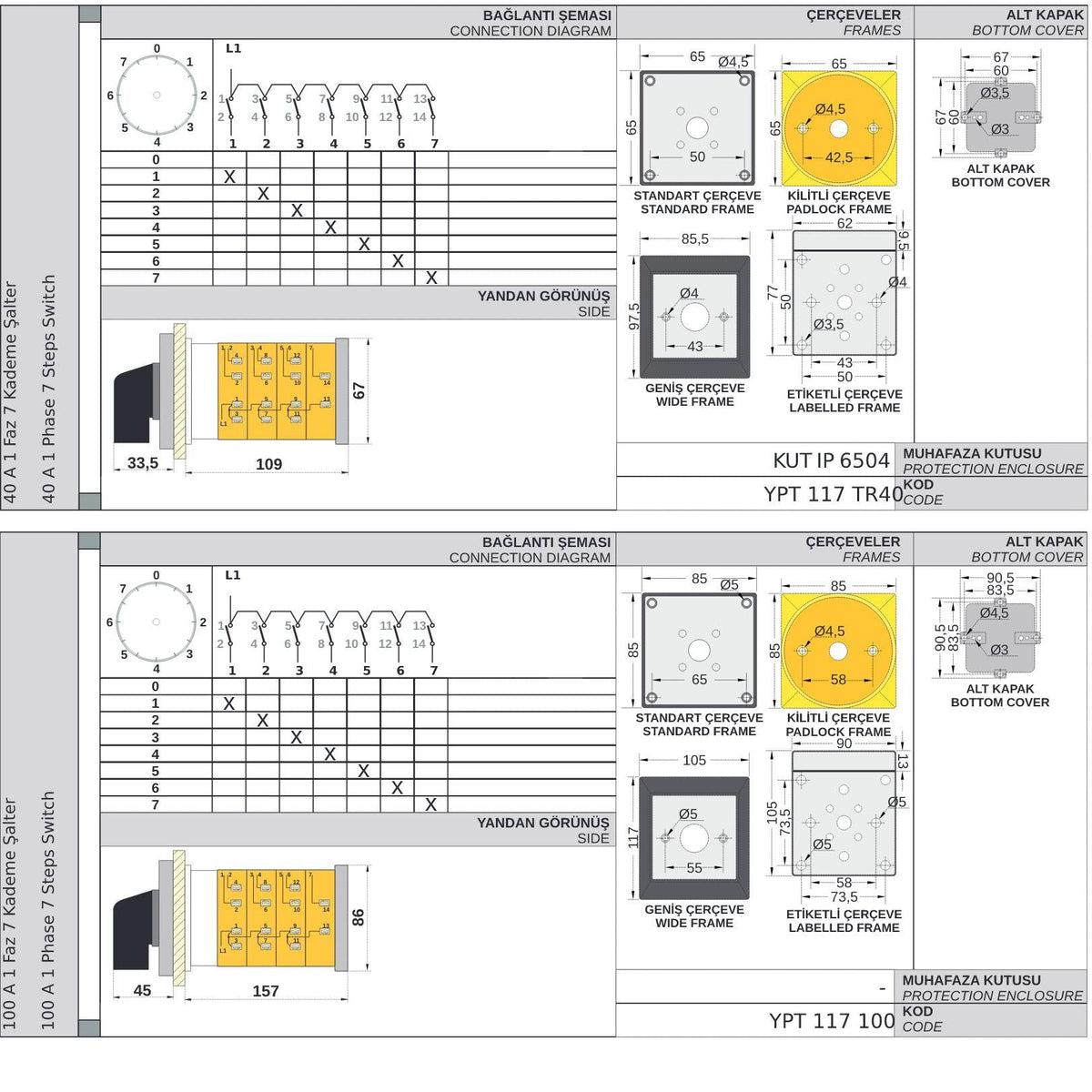

Step (step) switch 0-1-2-3-3-4-4-5-6-7, rotary switch, 1 pole, 10-160A, YPT117 manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A

The 0-1-2-2-3-4-5-6-7 step switch can be used, for example, to activate one of several devices/modes/steps of a processing program, etc.

Step switches are designed for manual switching of low-voltage circuits. They are used to form main and control circuits, to turn on and off electric motors and other low-power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance.

The multi-position scheme 0-1-2-3-3-4-5-6-7 is used to switch between different operating modes of the equipment (movement speed, heating temperature).

Technical specifications:

• Geared construction.
• Device type: rotary switch

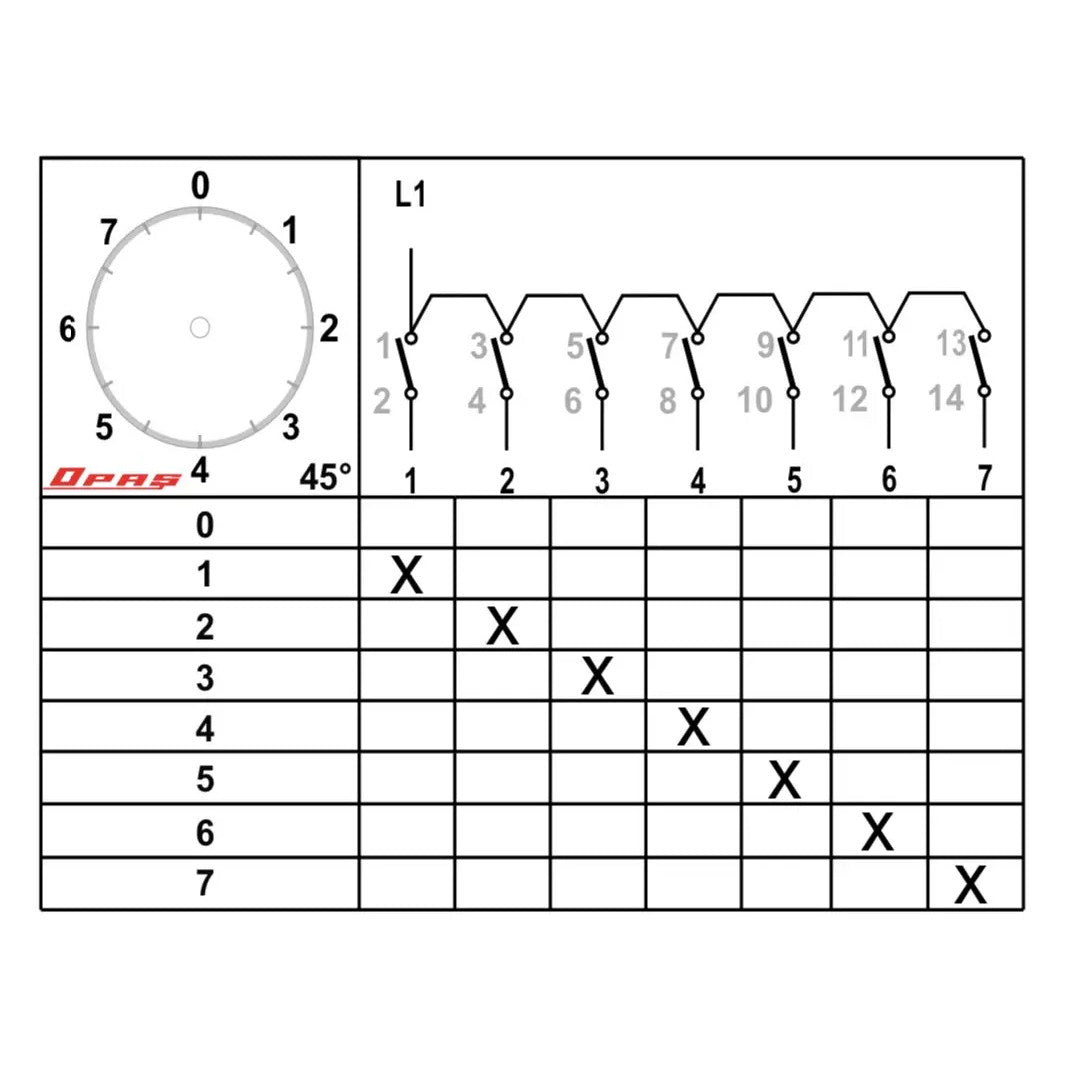

• Switching pattern: 0 - 1 - 2 - 3 - 4 - 5 - 6 - 7
• Number of poles: 1
• Type: built-in
• Number of phases: single phase
• Protection: no
• Dust and water protection rating: IP20
• Operating temperature range: -30 to +55 °C
• Manufacturer.
• Country of manufacture: Turkey
• Number of working positions: 8
