Plastim

Fan with filter, 30 (41) m3/h, 120x120, 230V 50/60Hz, IP54 PTF1000 Plastim

In stock - 102 items available
SKU: PTF1000
€28,88 with VAT

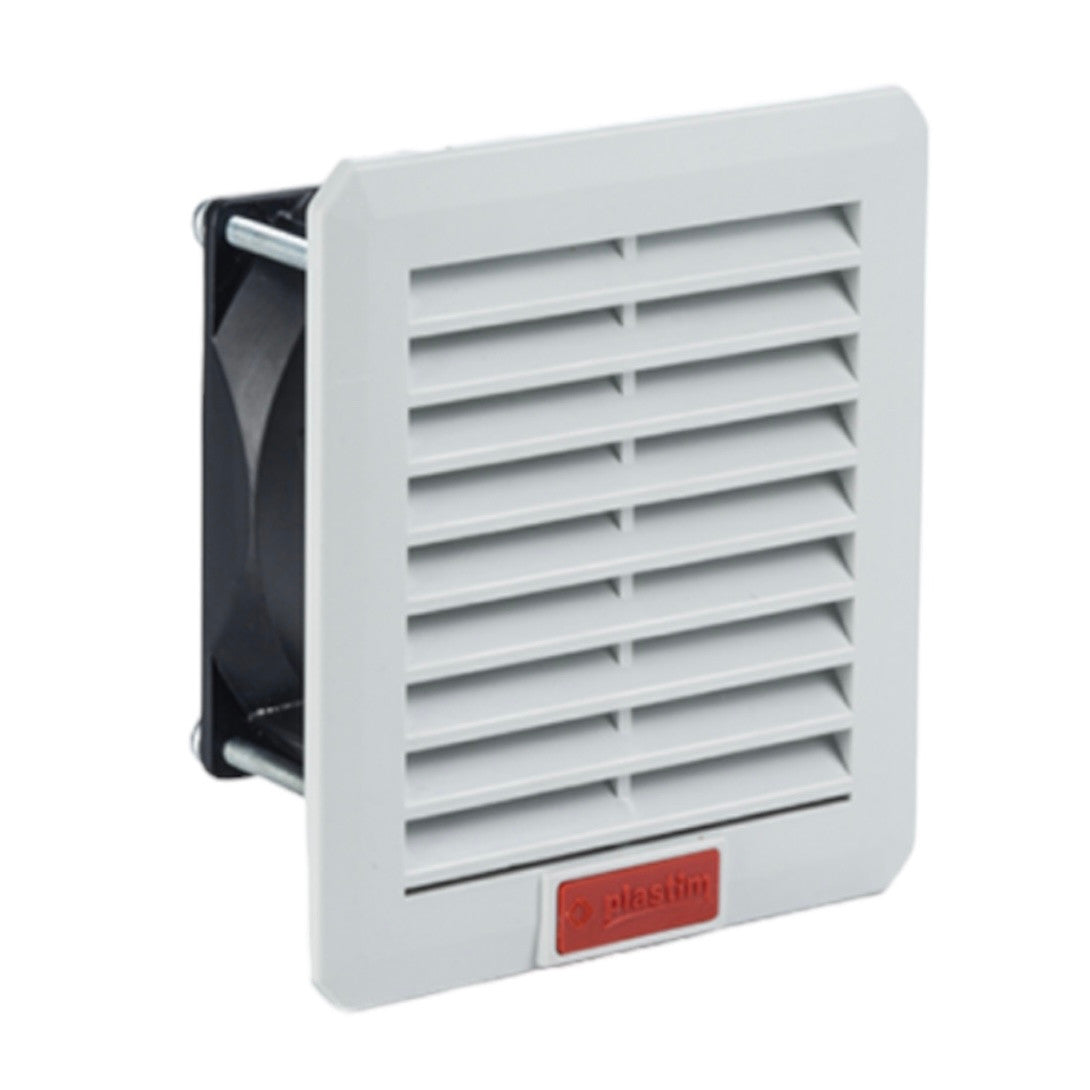

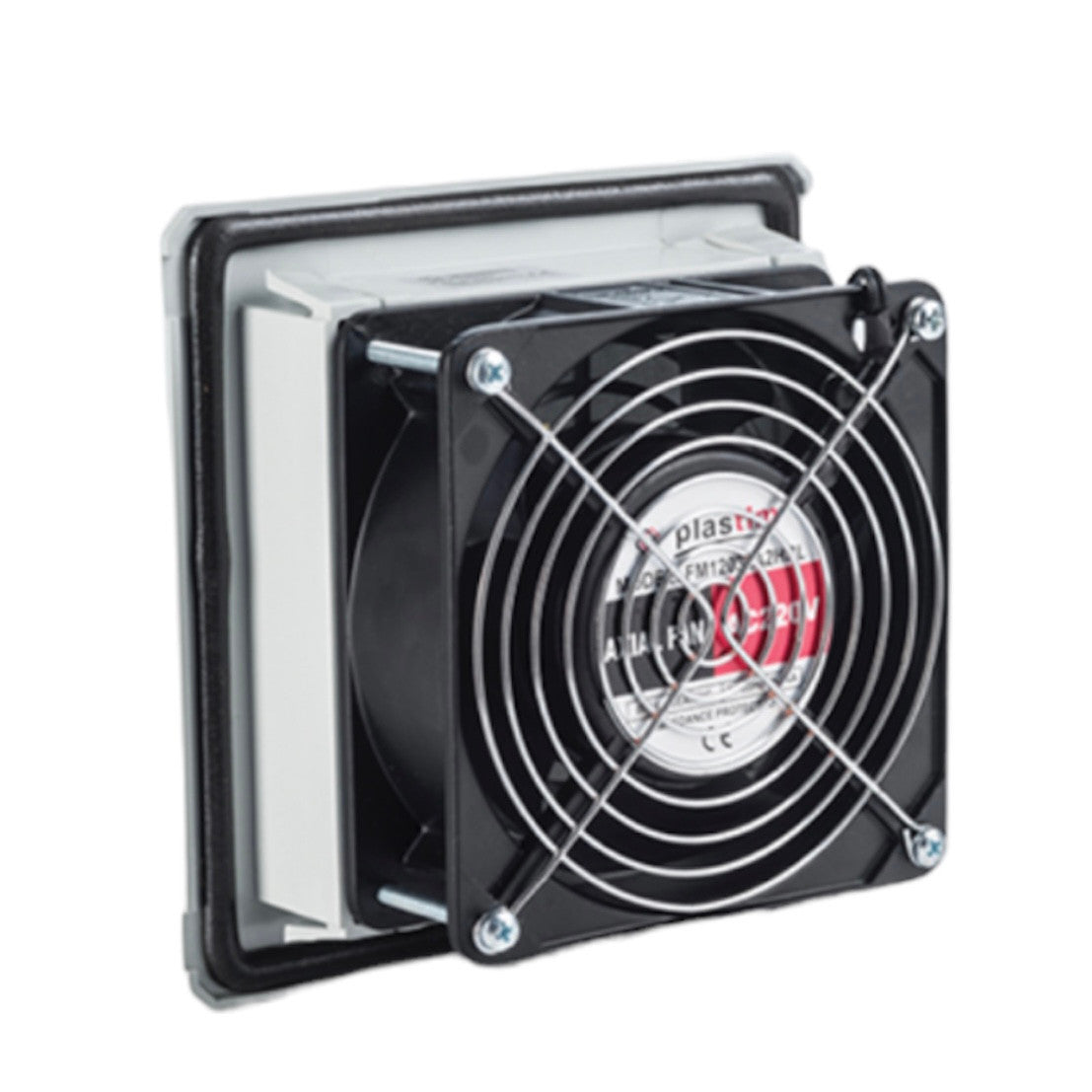

120x120 mm ventilation grille with fan and filter, designed for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF1000, manufacturer Plastim (Turkey)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, slot machines, automation cabinets, control panels, gas stations. Usually mounted on the side walls of boxes to maintain IP.

  • External dimensions: 120x120x58.5 mm
  • Installation dimensions: 92x92 mm
  • Volume flow: 30 (41) m3/h
  • Noise level: 28 (31) dB(A)
  • Bearing: bushing type bearing
  • Operating voltage: 220-230 V AC, 50/60 Hz
  • Current consumption: 0.08 (0.07) A
  • Rated power: 14 (13) W
  • Electrical connection: lead wire
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection degree: IP54
  • Plastic material: UL94 V0 ABS Flame Retardant
  • Sealant: adhesive
  • Color: RAL 7035 (on request - RAL 7032)
  • Weight: 0.4 kg
  • Installation: quick clamping

To ensure automatic air exchange and temperature maintenance with this fan, you will need a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.

The ventilation grille has a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
