Vendor: TENSE

Filling level controller, drain switch Well level gauge SSR-05

Barcode: SSR-05
€30,56
€30,56
excl. VAT: €25
30 in stock

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

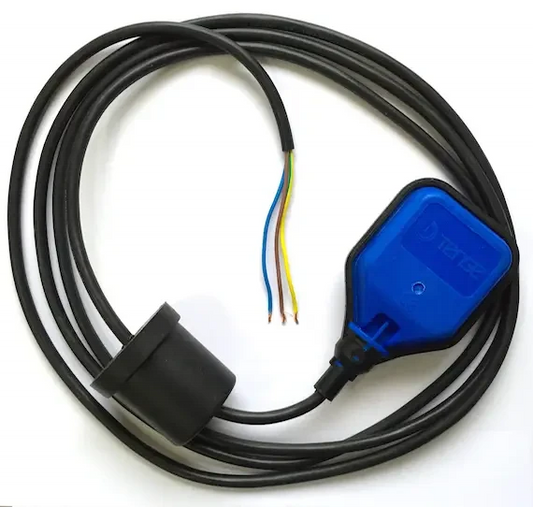

Float switch for clean water level (filling, draining), NO+NC, PVC  – 1.6 m

€10,92
€10,92
  • Description
  • Instructions
  • Payment methods
  • Warranty

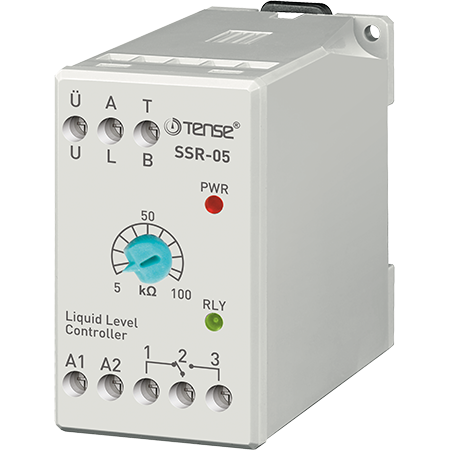

SSR-05 Liquid Level Control Relay - TENSE

Product Description

The SSR-05 relay is designed to control the liquid level in wells, reservoirs, tanks or pits.
It provides protection for centrifugal pumps from dry running or lack of water, which can damage hydraulic components and cause pump overheating.

The device is suitable for:

  • domestic and industrial water pumps (surface and submersible).

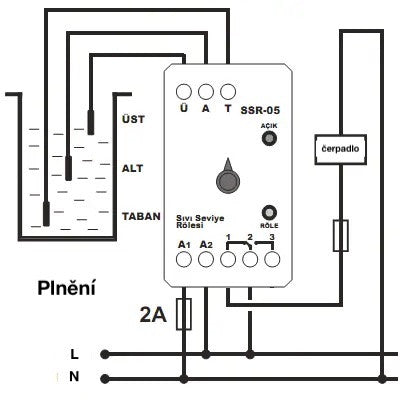

  • Pump control when filling the tank

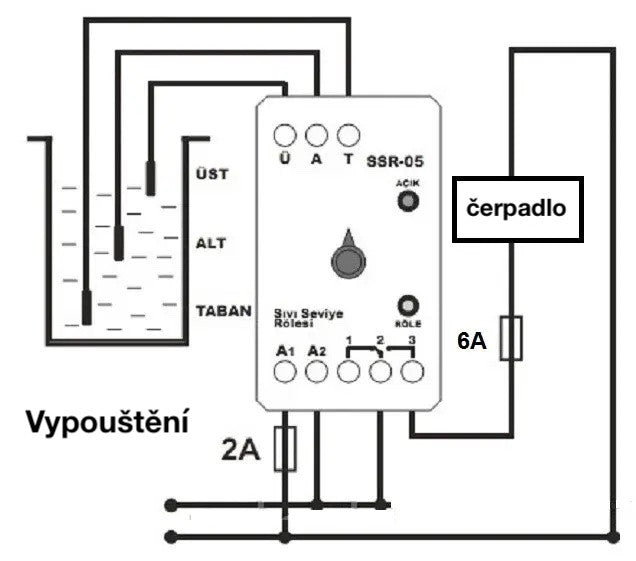

  • Water leak alarm and pump shutdown

The relay uses 2 or 3 level sensors, allows adjustment of sensor sensitivity and LED indication of water level.

Key Features

  • Protection of pumps from dry running

  • Water level monitoring in tanks, reservoirs or wells

  • Adjustable sensitivity of level sensors

  • Water level LED indication

  • Terminal connection for easy installation

Technical Parameters

  • Rated voltage: 220 V AC

  • Operating range: 170-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Connection: terminal

  • Dimensions: 44 × 75 × 85 mm

  • Weight: 250 g

Recommended Accessories

  • Level sensors (2 or 3, depending on configuration)

  • 2A switch to protect input and output channels (2 pcs)

Application

  • Automatic pump switching on and off

  • Control of filling tanks and reservoirs

  • Water shortage alarm and pump protection

  • Ideal for domestic and industrial applications

Download on

User manual
