TK80 - Current measuring transformer 1500/5
- Regular price
- €39,68
- Regular price
-
- Sale price
- €39,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|

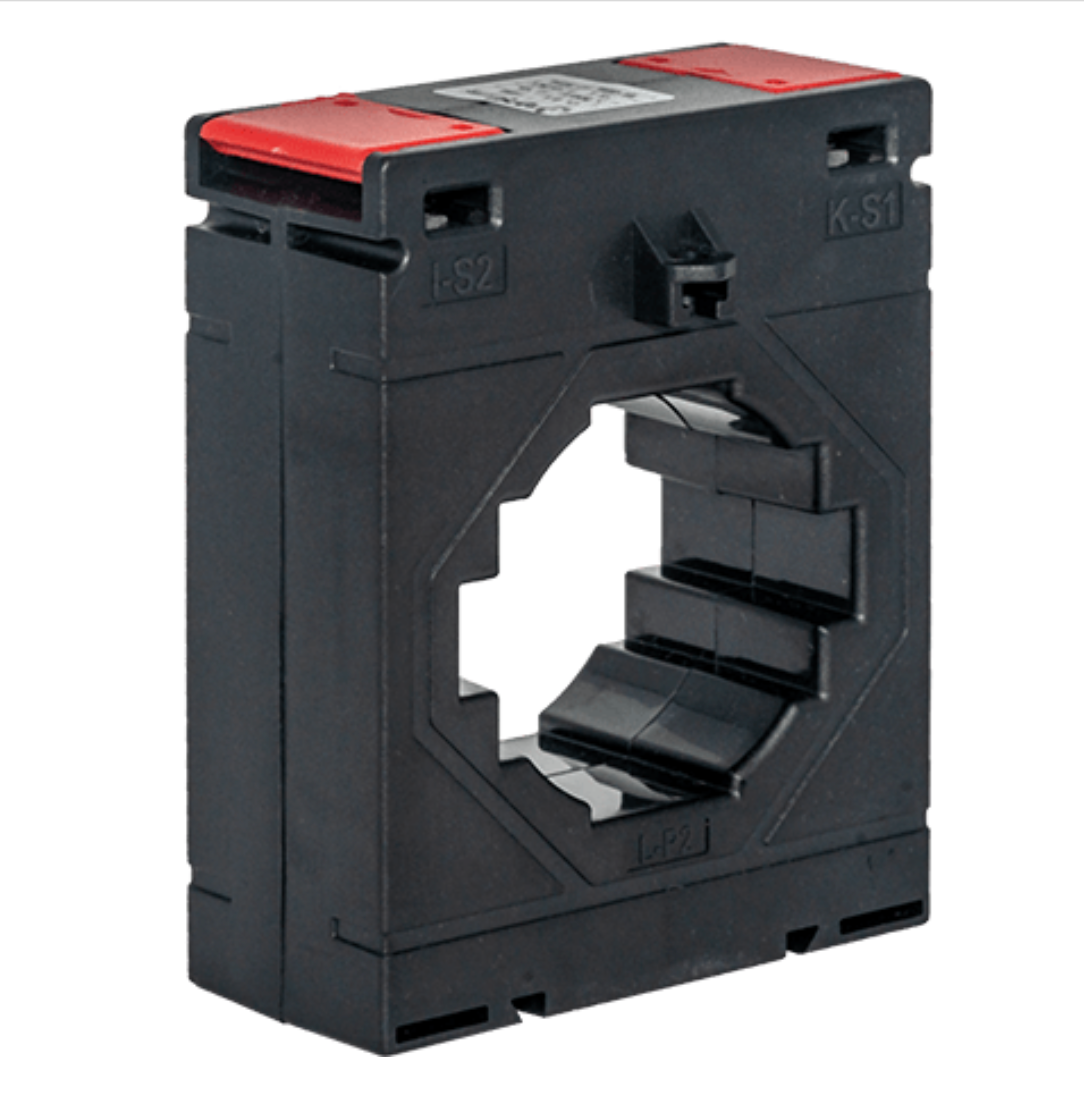

Current transformer 81x13, 1500/5A -0.5S - 20VA - 80mm, with clamping
Clamping current transformers allow precise measurement and control of electrical parameters in AC systems. They convert high current values to lower, measurement equipment safe values, thus enabling efficient control and management of electrical systems. Technical specifications

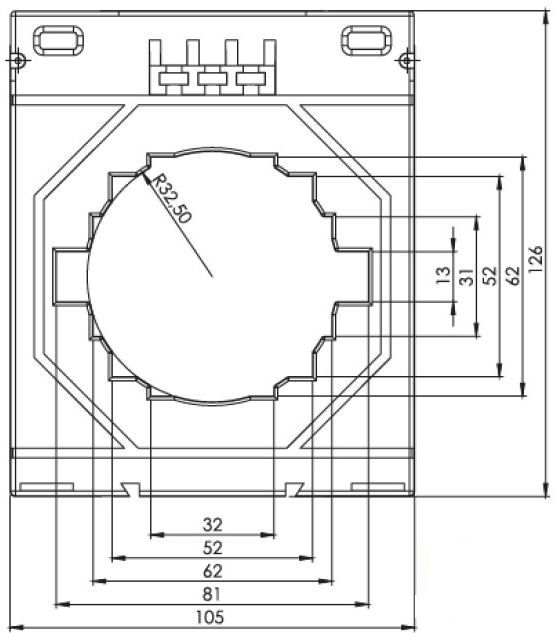

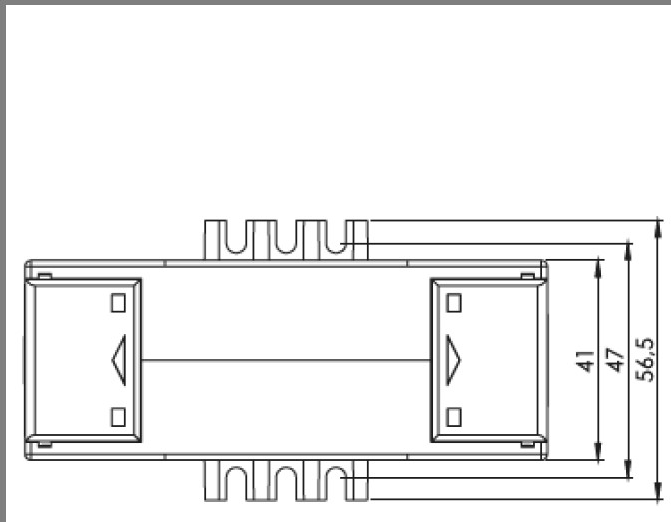

Ratio: 1500/5A Load power: 20VA Accuracy class: 0.5S Terminal block Non-removable cover; designed for large gauge conductors; made of brass for increased safety Housing Non-flammable, self-extinguishing ABS Mounting KK0001 or KK0002 Primary winding 80 x 10 mm Round conductor Ø 65 mm T resistance to short-circuit current Ith = 60*In T-resistance to continuous current Id = 1 * In Ambient temperature (operating hours) -25°C~+85°C Rated frequency 50 Hz ... 60 Hz Switching current limit FS 5 Test voltage 3 kV for 1 minute Maximum system voltage 0.72 kV Standards: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869
Advantages of clamping current transformers: High accuracy: ensures reliable measurements for precise control of electrical parameters. Wide range of rated currents: allows selection of the optimal model according to specific needs. Different sizes: different window sizes ensure mounting flexibility and compatibility with different conductors. Reliability and durability: made of high-quality materials, ensuring a long service life. |
The selection of clamping current transformers ensures stable operation of electrical systems and measurement accuracy, which is a key factor for effective energy management.
Download
Technical information on current transformers (996 kB) - we will send upon request
