Digital potentiometers are control devices that produce an analog output between 4-20 mA values.
- Microprocessors
- Analog output: 4-20 mA
- Menu entry and analog output control via front buttons
- Analog output control via digital inputs
- Adjustable upper and lower scale levels
- Adjustable upper and lower SET limits
- Separate selection of front keys and digital input functions for analog output control
- Password protection
- SECU setting to enable/disable SET adjustment menu input
- High accuracy
- EEPROM memory for saving settings
- Easy connection using plug-in connectors
TECHNICAL SPECIFICATION
- Dimensions: 35x77 mm
- Panel cutout: 29x71 mm
- Display: 4 digit 7 segment
- Analog output: 0-10 V or 4-20 mA (must be specified when ordering)
- 0-10V load impedance: >5K
- 4-20mA max. Voltage: <10V
- Resolution: 2 mV (0-10V), 4 μA (4-20mA)
- Accuracy: ±%1; (overscale)

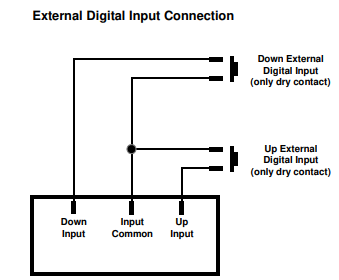

- User Control: Digital Inputs: Up/Down via front panel buttons or Up/Down via digital inputs
- Digital inputs: dry contact input only
- Power supply: 100...240VAC, 50-60Hz or 24VDC/AC.
- Power consumption: < 6VA
- Humidity: 80% up to 30oC, then decreases linearly to 50% at 50oC (non-condensing)
- Altitude: < 2000 m
- Protection class: IP20
- Operating temperature: 0 ... 50 oC
- Storage temperature: -10 oC ... 60 oC (without icing)
- Weight: < 0.5 kg
