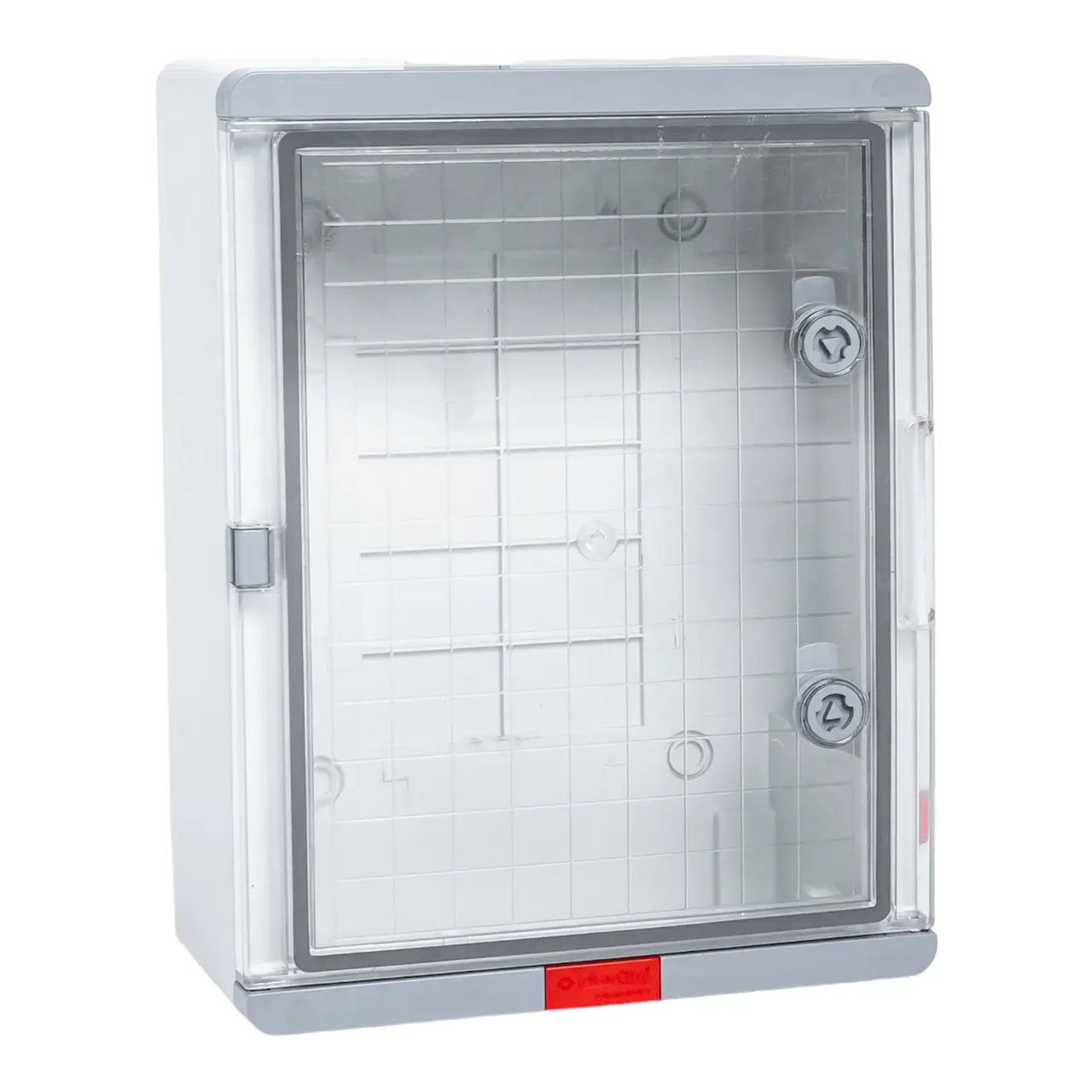

Plastic box IP 67, transparent door, 300x200x130 mm

Waterproof plastic electrical panel IP67 with mounting plate Plastim (Turkey)

The impact-resistant IP67 panel from Turkish manufacturer "Plastim" is a reliable solution designed to protect electrical connections in environments with high humidity, dust, and chemicals. Its durable plastic housing and high degree of tightness make it suitable for outdoor use, industrial facilities, construction projects, and marine infrastructure.

Advantages of the IP67 waterproof plastic enclosure

Complete protection against dust and moisture (IP67)
The device is fully protected against dust and can withstand temporary immersion in water up to 1 meter deep for up to 30 minutes. Ideal for car washes, outdoor installations, or wet and dusty environments.

Corrosion resistance
The plastic housing does not rust, which is an advantage, especially in marine climates, chemical plants, and high humidity areas.

Easy installation and transport
Due to its light weight, the device is easy to install and transport even in hard-to-reach areas.

High dielectric properties
Plastic is a non-conductive material that provides additional electrical insulation and increases the level of safety.

UV resistance
UV-resistant ABS plastic maintains its strength and color stability even with prolonged exposure to sunlight.

Technical parameters

• Material: ABS, UV resistant, halogen-free

• Protection: IP67

• Impact resistance (IK): IK08

• Rated current: 800 A

• Rated voltage: 690 V

• Operating temperature: from -35 to +65 °C

• RAL color code: 7035

• Dimensions (height × width × depth ): 300 × 200 × 130 mm

• Package dimensions: 304 × 204 × 134 mm

• Net weight: 1.7 kg
