ONKA 4 mm2, 2-stage spring rail connector, DIN rail terminal, 4 wires, gray, 1020406

Payment by card online - after completing your order, you will be directed to the payment gateway, payment confirmation will be sent to your email.

COD – you make the payment by money order to the driver of the transport company

By bank transfer - no later than the next business day, you will receive an advance invoice by e-mail, in which you will find the account number, which you will enter when making the payment.

By invoice – this payment option is available to partners who have signed a general agreement with our company.

​If you want to use the last 2 methods, call our manager and he will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, there is no fee for returning the goods.

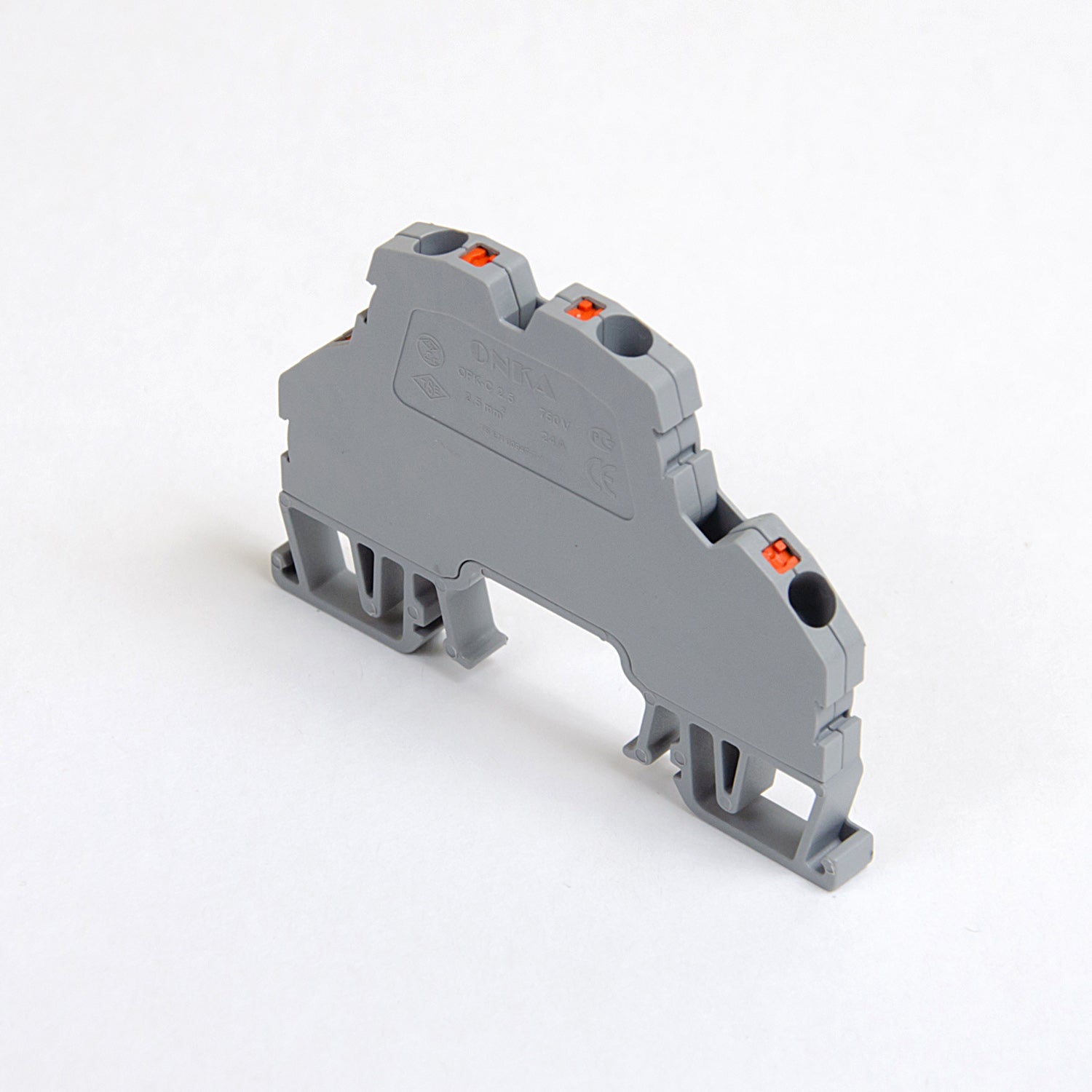

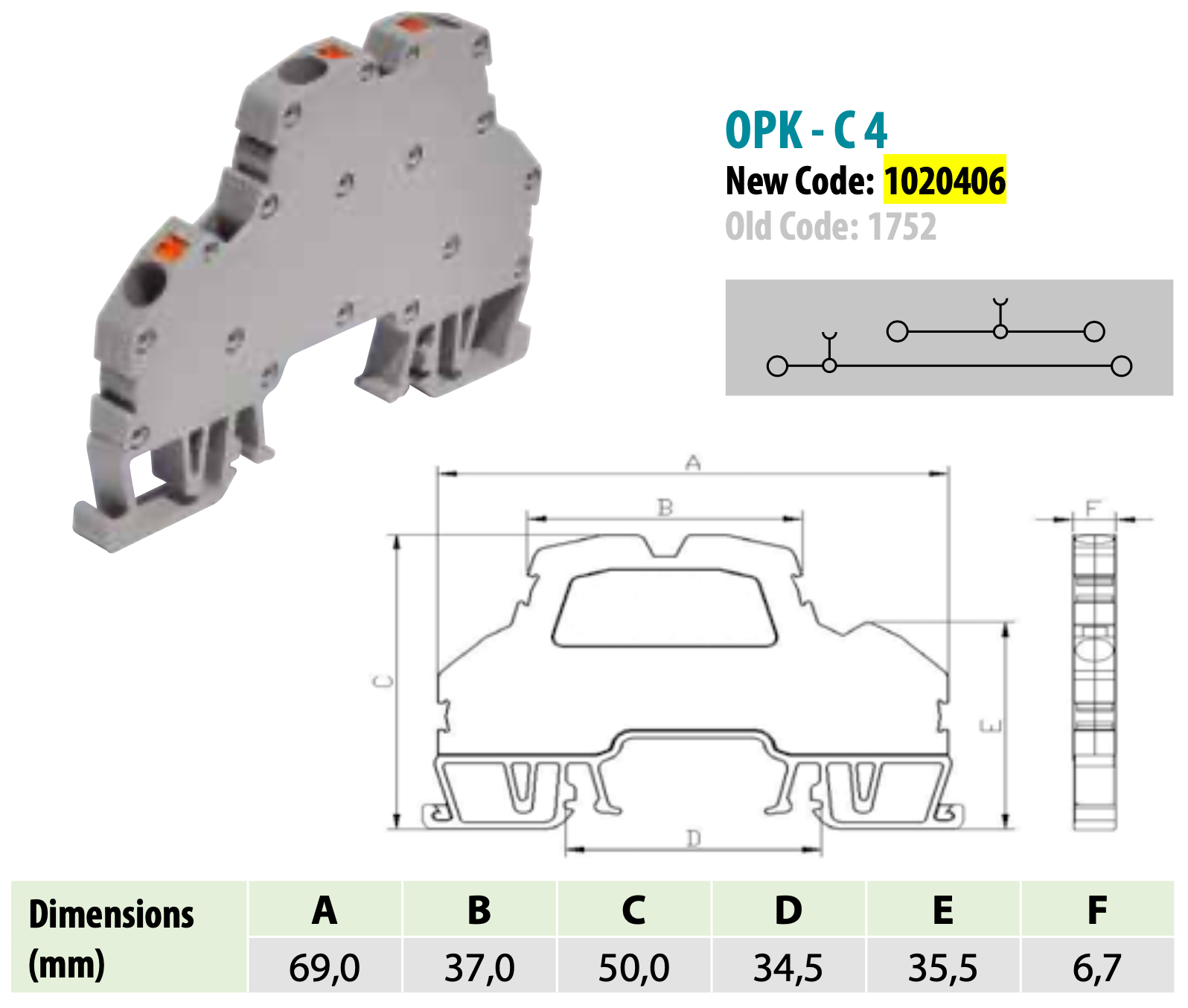

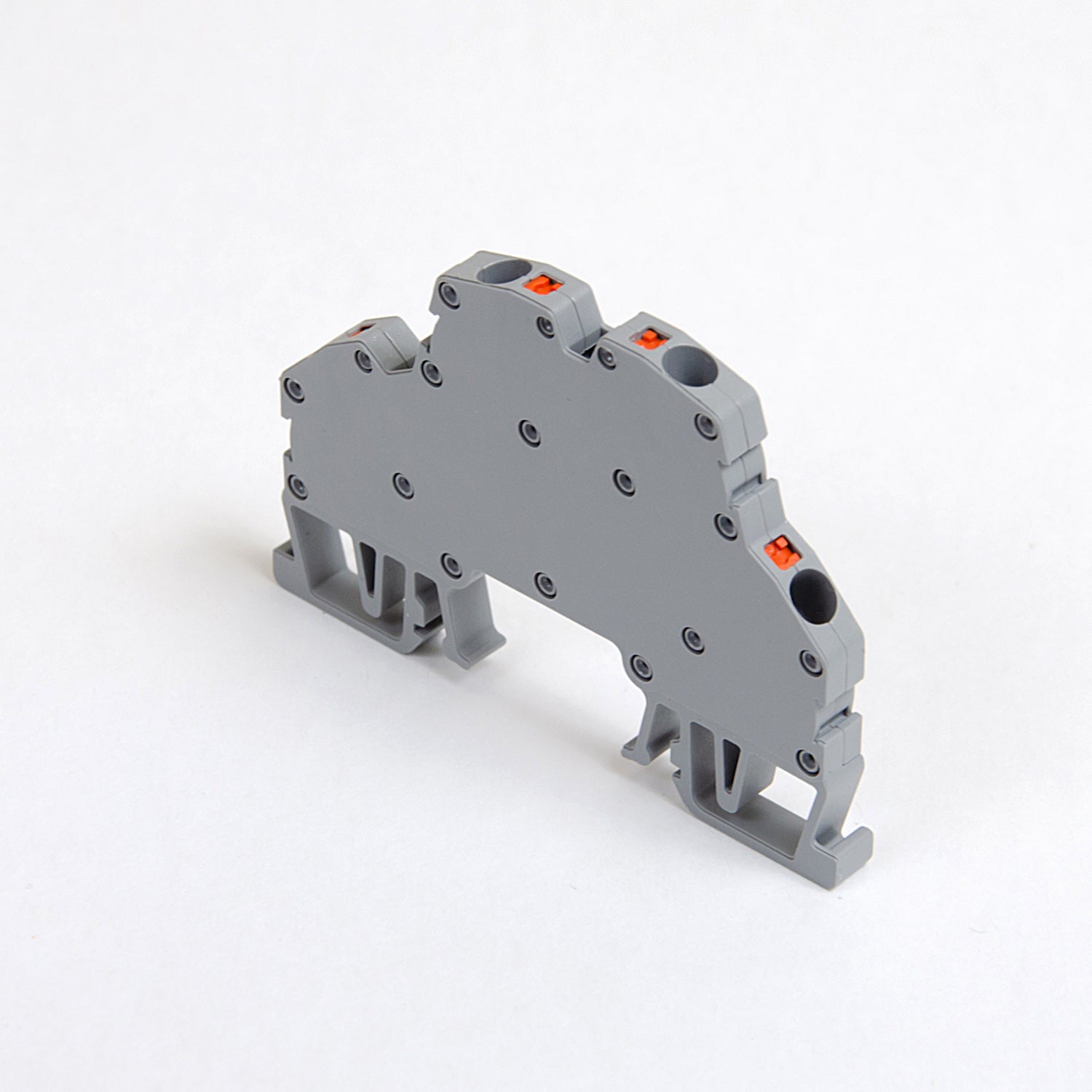

2-pair spring-loaded busbar connector / DIN rail terminal 4 wires gray, ONKA, made in Turkey

Compact ONKA mounting rail connectors provide excellent opportunities for connecting wires of any cross-section. The transparent housing makes it easy to check whether the wires are correctly arranged. Original ONKA quick connectors mean ease of installation and 100% connection reliability.

Technical parameters

Cross-section of one connected wire up to: 4 mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: top/top
Cable strip length: 9 mm
Electrical connection type: spring clamp
Rated voltage: 750 V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
