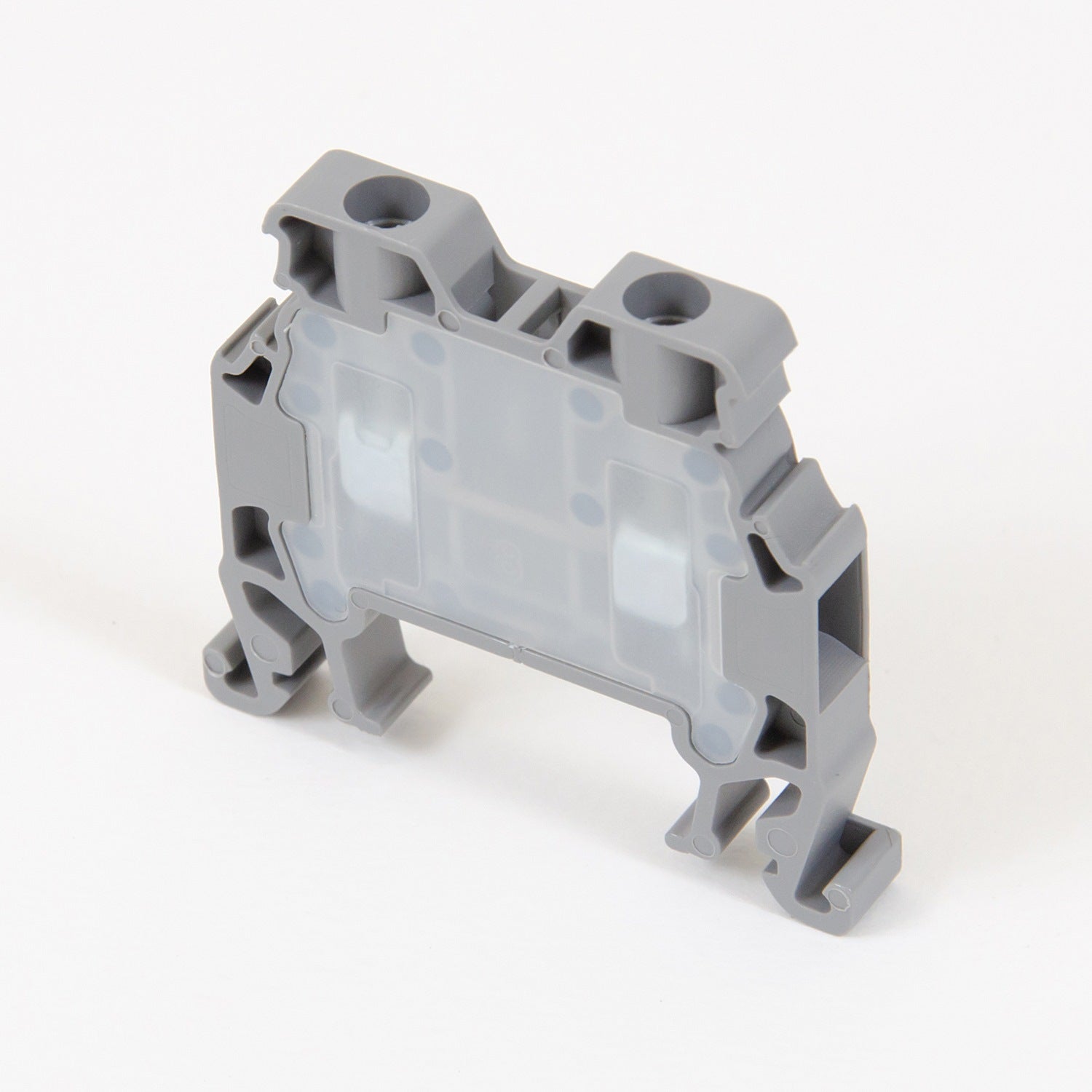

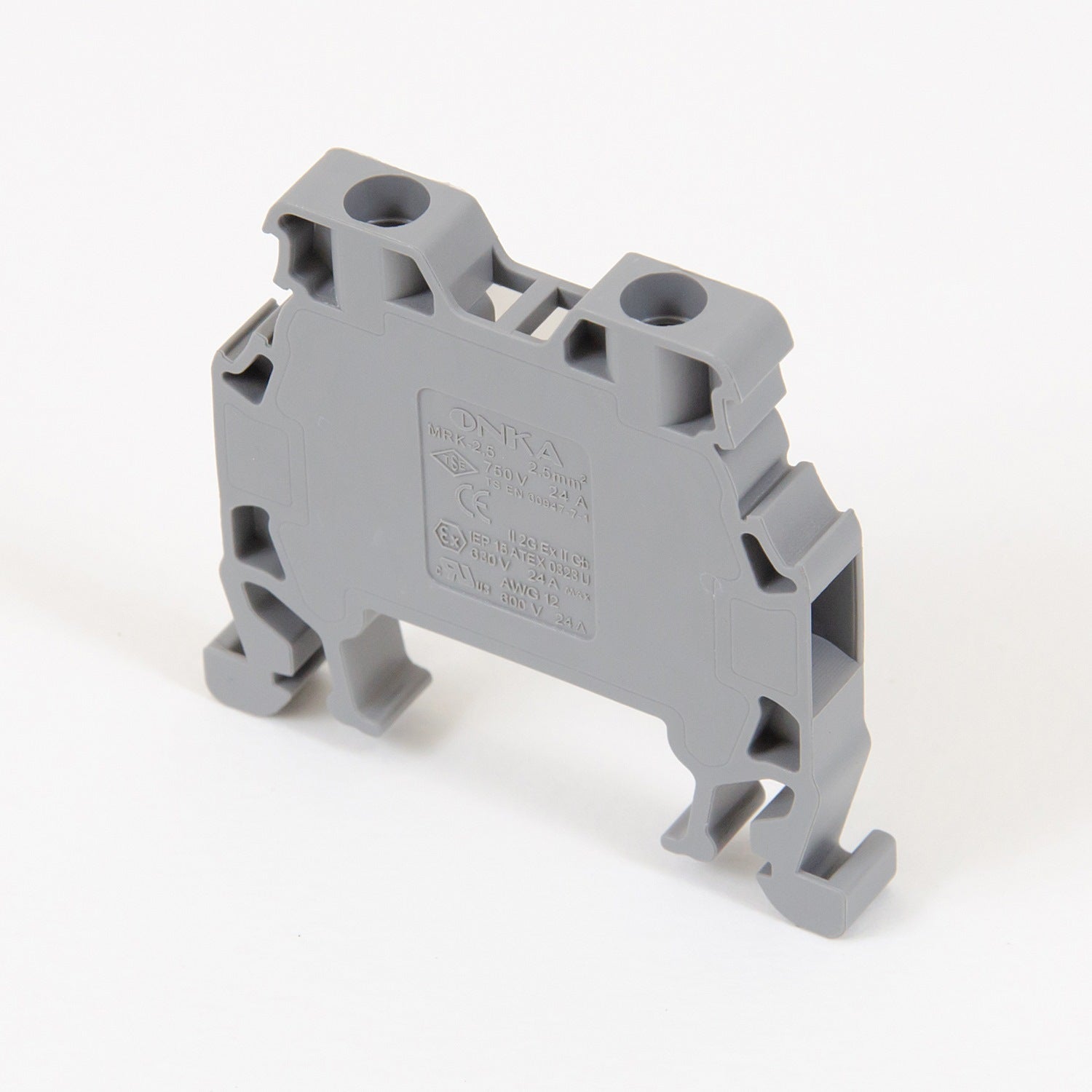

Threaded busbar connector / DIN rail terminal 2 wires gray, ONKA, made in Turkey

Compact ONKA mounting rail connectors provide wide possibilities for connecting wires of any cross-section. Thanks to the transparent housing, it is easy to check whether the wires are correctly arranged. Original ONKA quick connectors mean ease of installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 2.5 mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.4 Nm
Connection position: side/side
Cable strip length: 10 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 24 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
