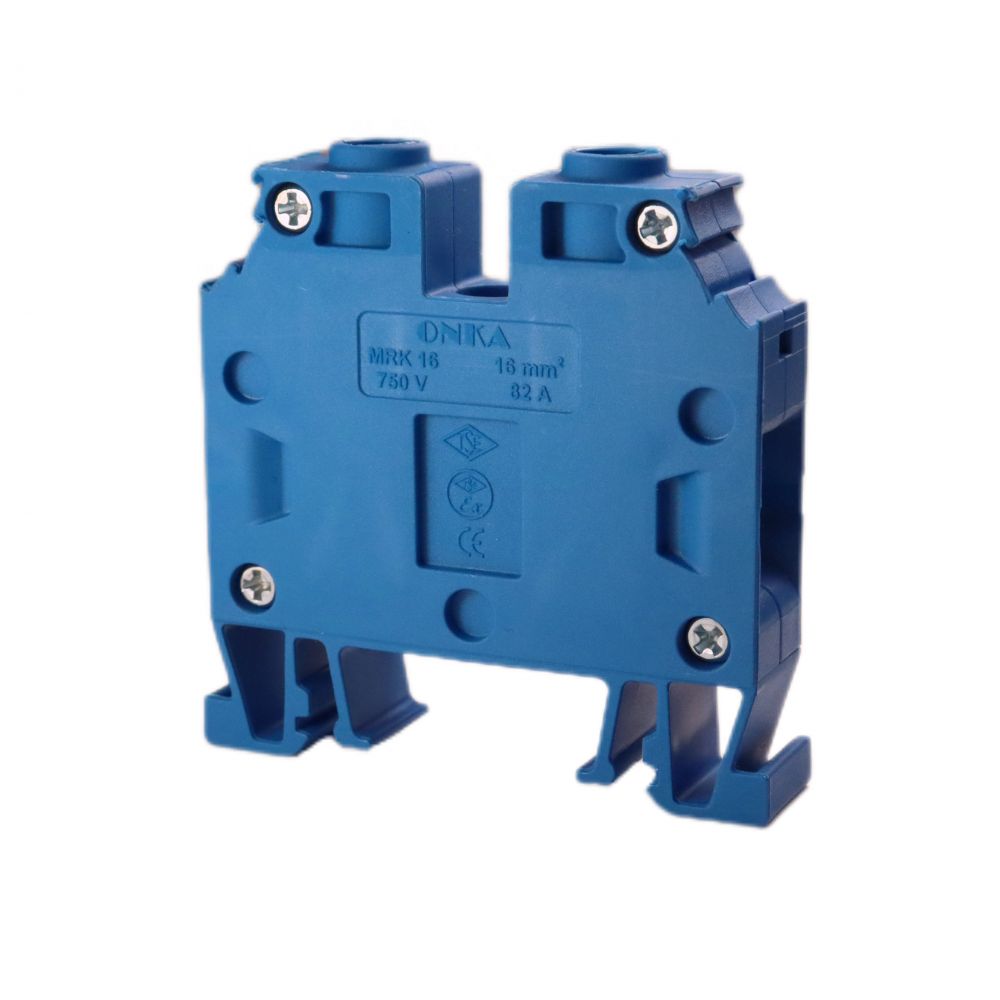

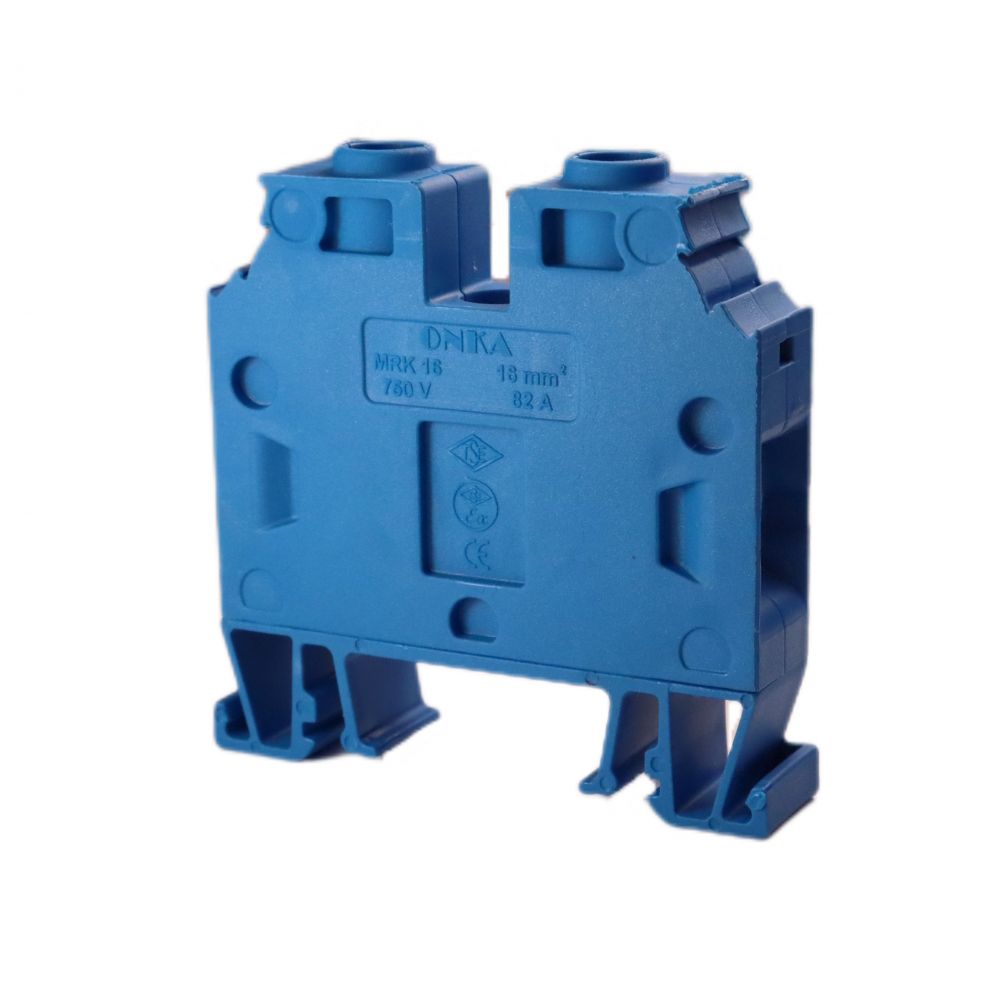

ONKA 16mm2 Screw Rail Connection Terminal Block DIN Rail Terminal Block 2 Wires Blue, 1010055

In stock - 195 items available
SKU: 1010055
Common price €1,72 with VAT

Payment by card online - after completing your order, you will be directed to the payment gateway, payment confirmation will be sent to your email.

COD – you make the payment by money order to the driver of the transport company

By bank transfer - no later than the next business day, you will receive an advance invoice by e-mail, in which you will find the account number, which you will enter when making the payment.

By invoice – this payment option is available to partners who have signed a general agreement with our company.

​If you want to use the last 2 methods, call our manager and he will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, there is no fee for returning the goods.

Threaded busbar connector / DIN busbar terminal 2 wires blue, ONKA, made in Turkey

ONKA connector/terminal is a reliable solution for anyone looking for functional and durable electrical installation elements.
The connector, made of high-quality materials, ensures long-term use and resistance to mechanical damage.

Technical parameters

Connectable single wire cross-section up to: 16 mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact and bridge material: CK45 steel/copper
Torque: 2.0 Nm
Connection position: side/side
Cable strip length: 18 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 76 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
