ONKA 16mm2 PE Screw rail connection DIN rail terminal block, 2 wires, gray, 1010223

Payment by card online - after completing your order, you will be directed to the payment gateway, payment confirmation will be sent to your email.

COD – you make the payment by money order to the driver of the transport company

By bank transfer - no later than the next business day, you will receive an advance invoice by e-mail, in which you will find the account number, which you will enter when making the payment.

By invoice – this payment option is available to partners who have signed a general agreement with our company.

​If you want to use the last 2 methods, call our manager and he will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, there is no fee for returning the goods.

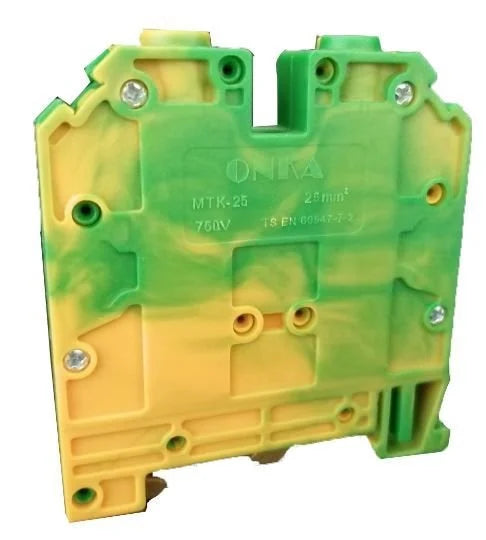

PE threaded busbar connector / DIN rail terminal 2 wires green-yellow, ONKA, made in Turkey

Compact ONKA mounting rail connectors provide great possibilities for connecting wires of any cross-section. The transparent housing makes it easy to check whether the wires are correctly arranged. Original ONKA quick connectors mean ease of installation and 100% connection reliability.

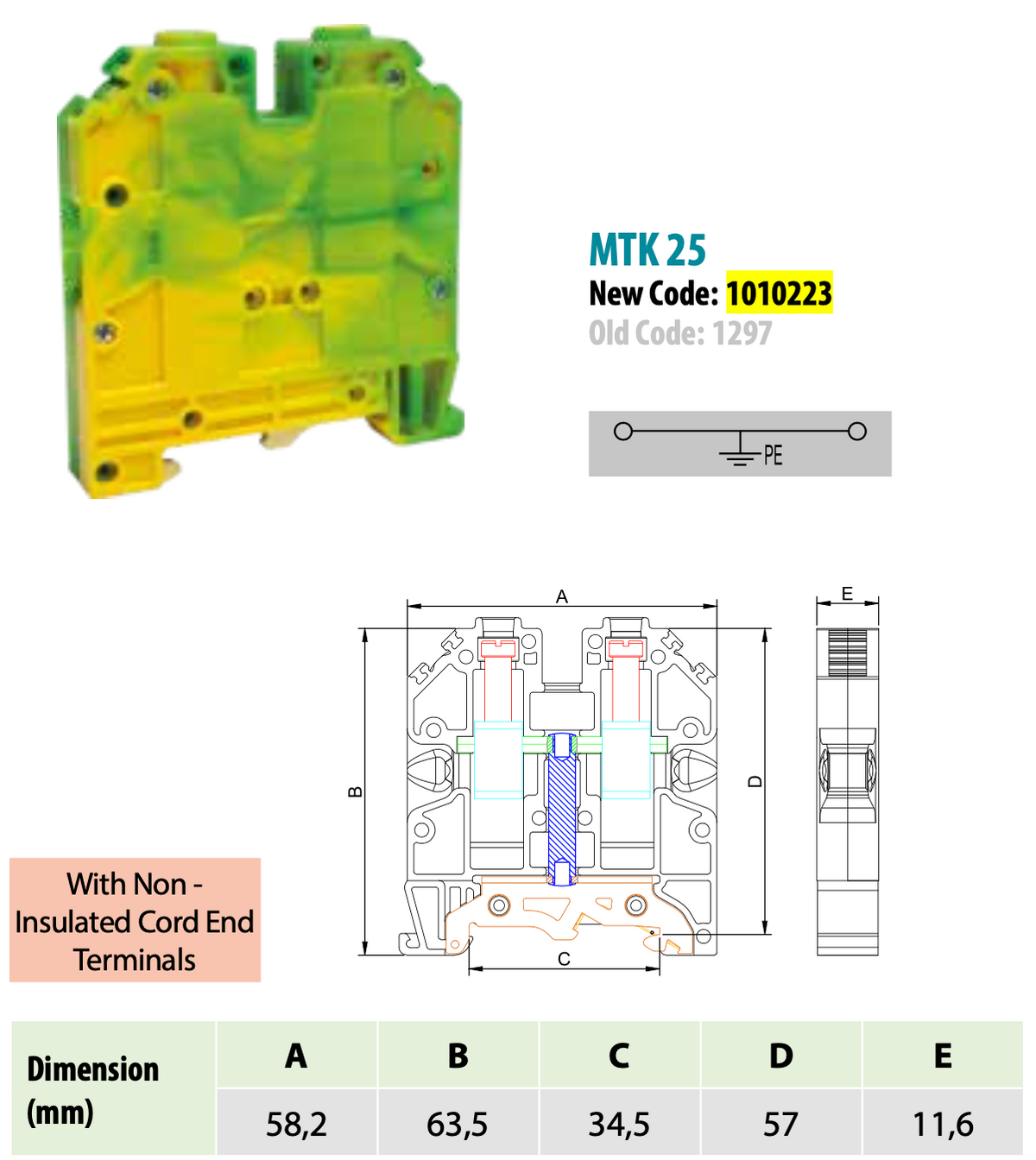

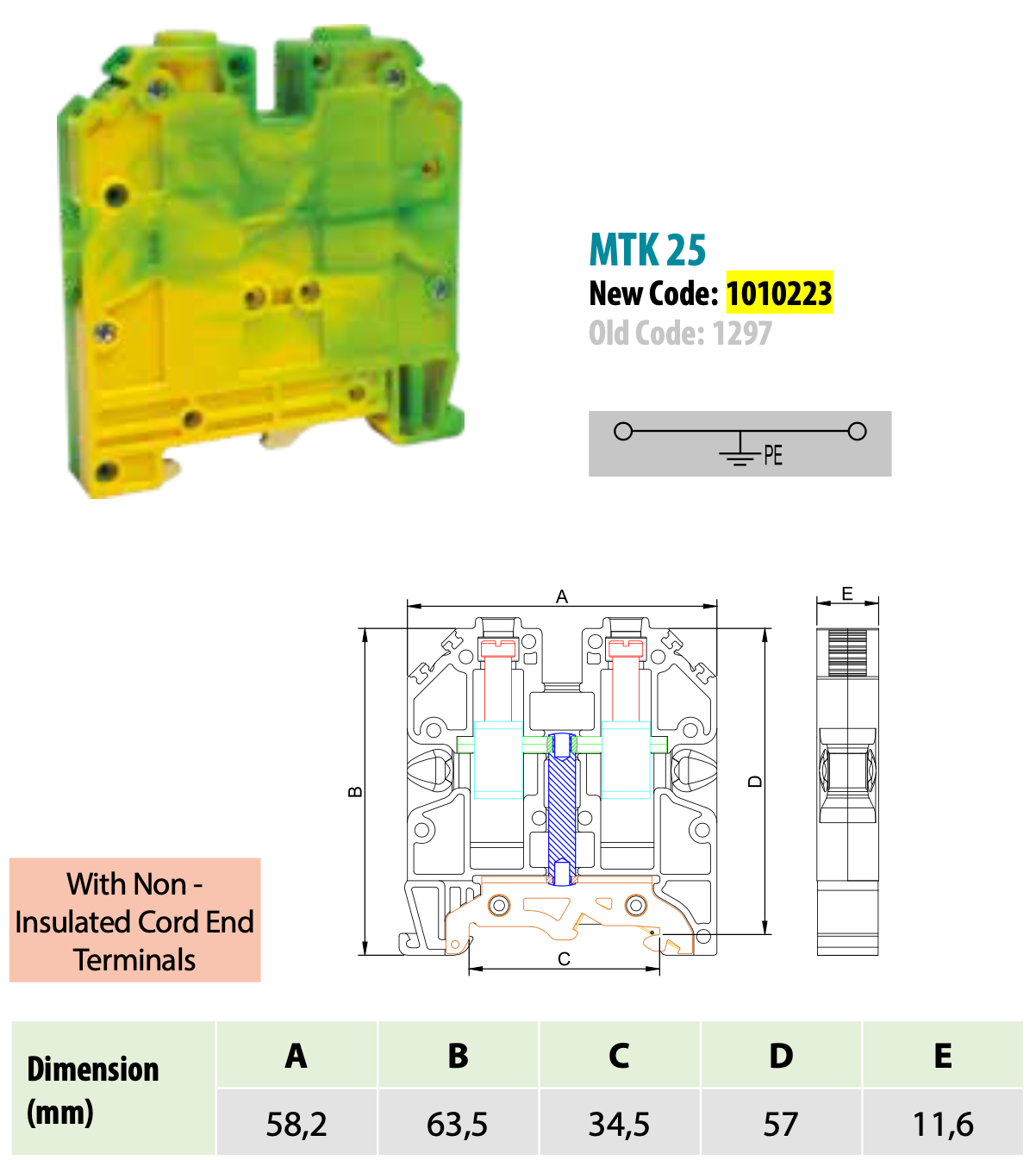

Technical parameters

Connectable single wire cross-section up to: 25 mm2
Color: Color: green-yellow (camouflage)
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 1.2 Nm
Connection position: side/side
Cable strip length: 16 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
