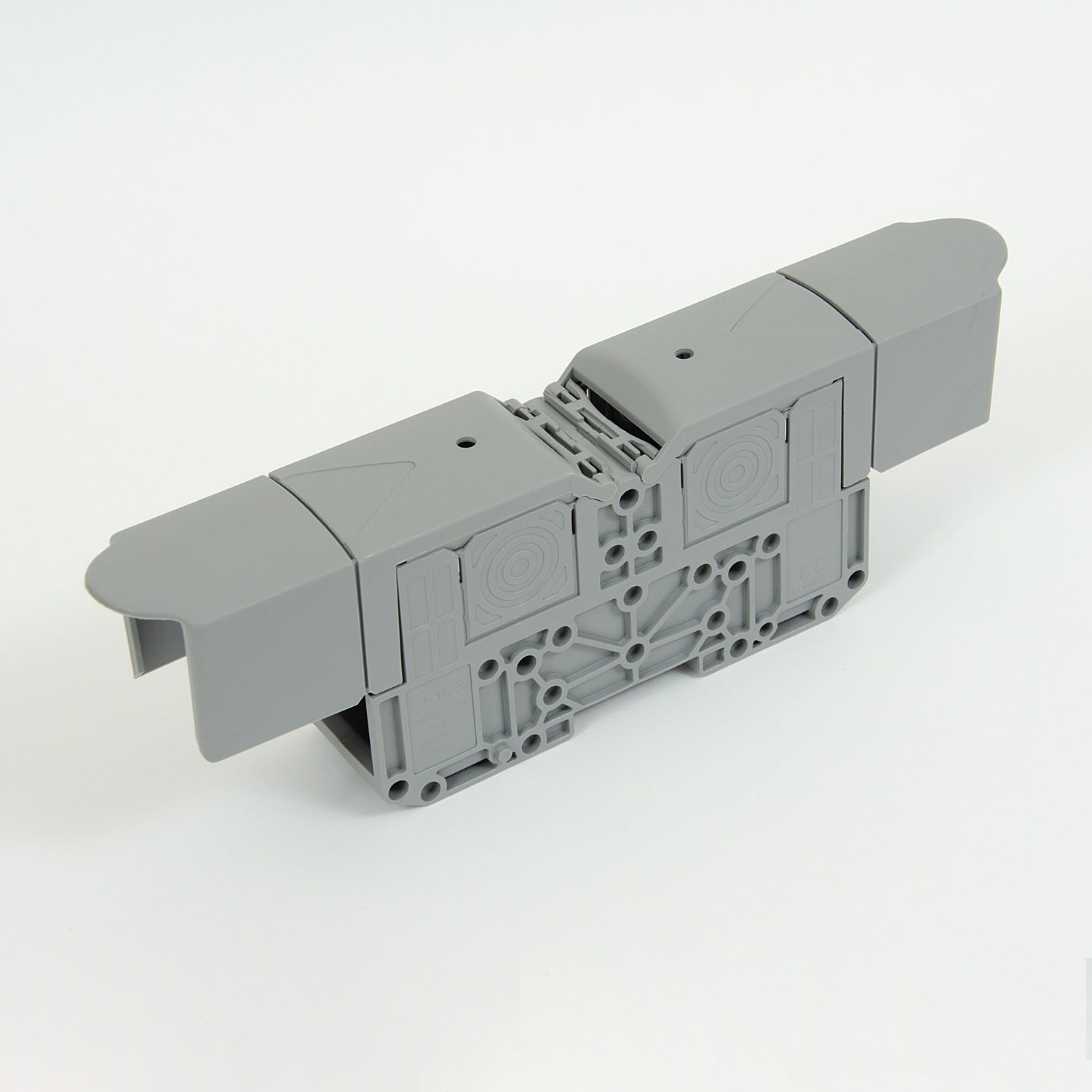

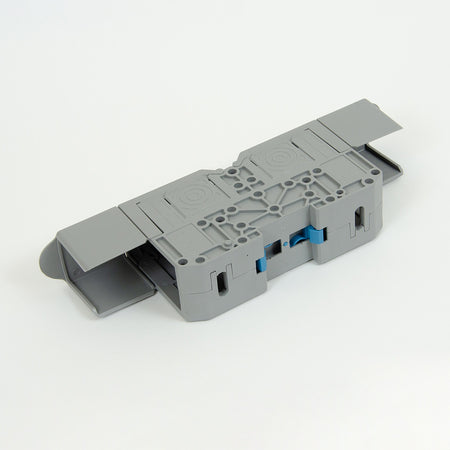

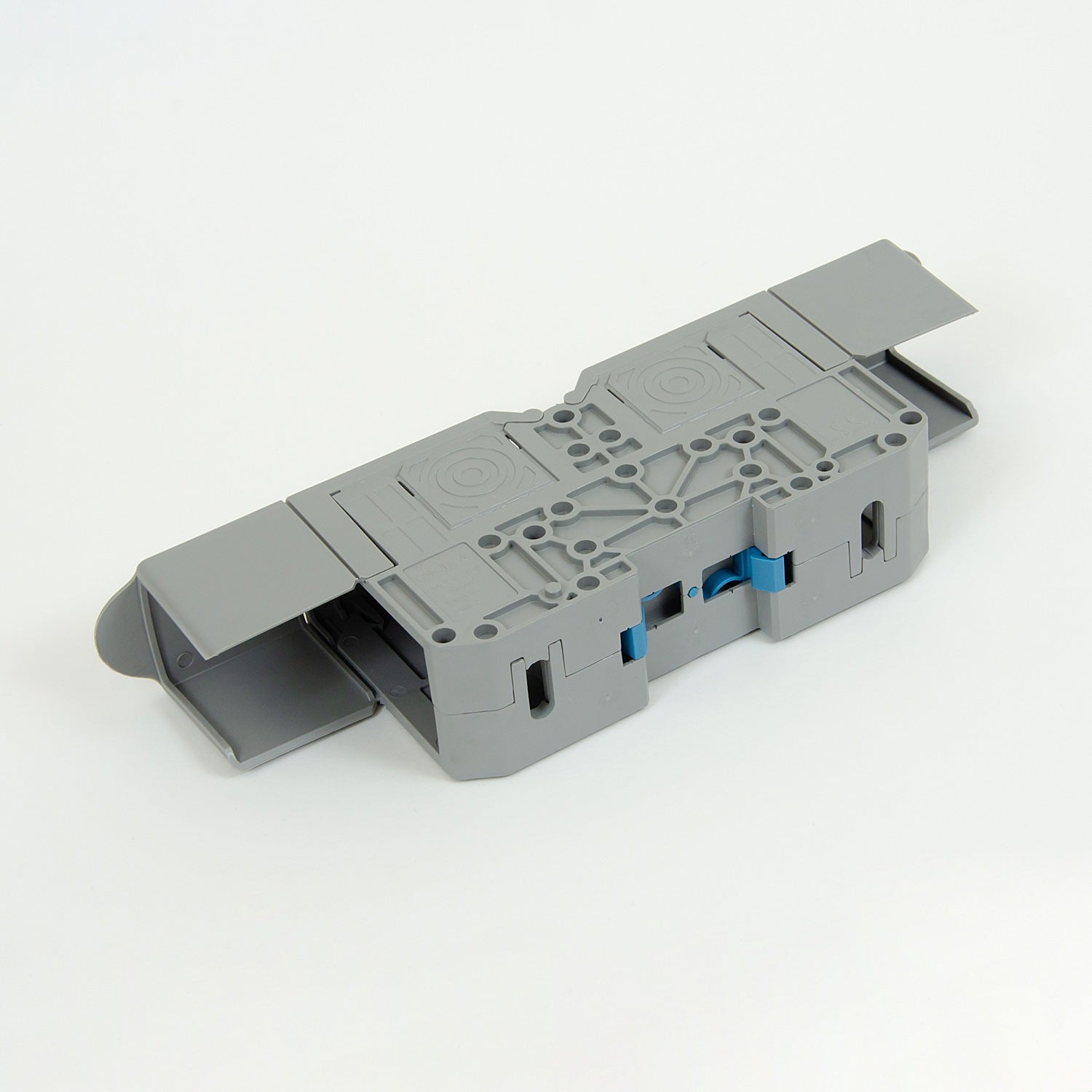

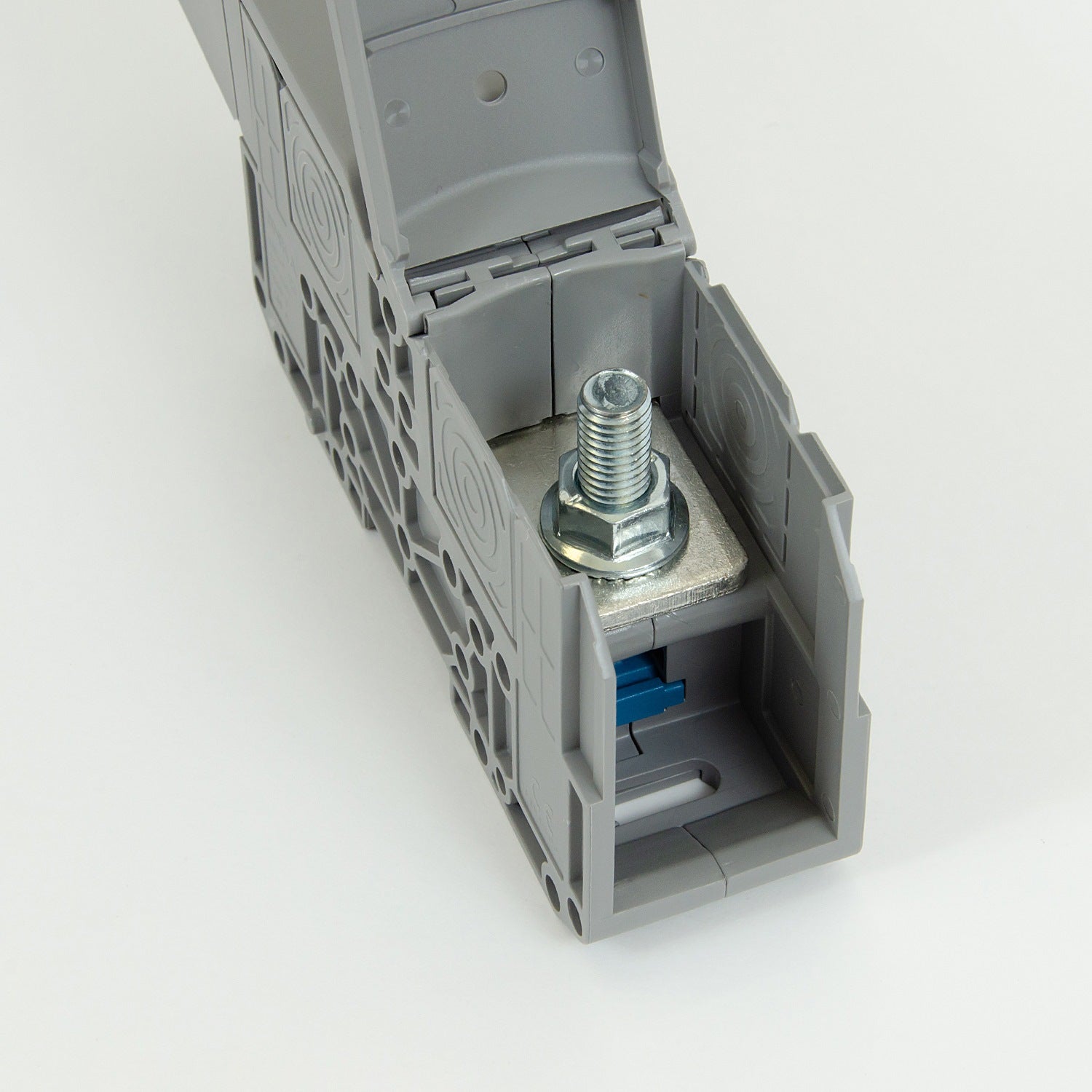

ONKA 120mm2 M10 Screw rail connection DIN rail terminal block with protective cover, gray, 1030073

Payment by card online - after completing your order, you will be directed to the payment gateway, payment confirmation will be sent to your email.

COD – you make the payment by money order to the driver of the transport company

By bank transfer - no later than the next business day, you will receive an advance invoice by e-mail, in which you will find the account number, which you will enter when making the payment.

By invoice – this payment option is available to partners who have signed a general agreement with our company.

​If you want to use the last 2 methods, call our manager and he will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, there is no fee for returning the goods.

M10, 120 mm2, threaded busbar connector / DIN rail terminal with protective cover, gray, ONKA, made in Turkey

Compact ONKA mounting rail connectors provide excellent opportunities for connecting wires of any cross-section. The transparent housing makes it easy to check whether the wires are correctly arranged. Original ONKA quick connectors mean ease of installation and one hundred percent connection reliability.

Technical parameters

Connectable single wire cross-section up to: 120 mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: side/side
Rated voltage: 1000 V
Rated current: 269 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
