ONKA 10 mm2 spring-loaded rail connector DIN rail terminal block, 2 wires, blue, 1020047

Payment by card online - after completing your order, you will be directed to the payment gateway, payment confirmation will be sent to your email.

COD – you make the payment by money order to the driver of the transport company

By bank transfer - no later than the next business day, you will receive an advance invoice by e-mail, in which you will find the account number, which you will enter when making the payment.

By invoice – this payment option is available to partners who have signed a general agreement with our company.

​If you want to use the last 2 methods, call our manager and he will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, there is no fee for returning the goods.

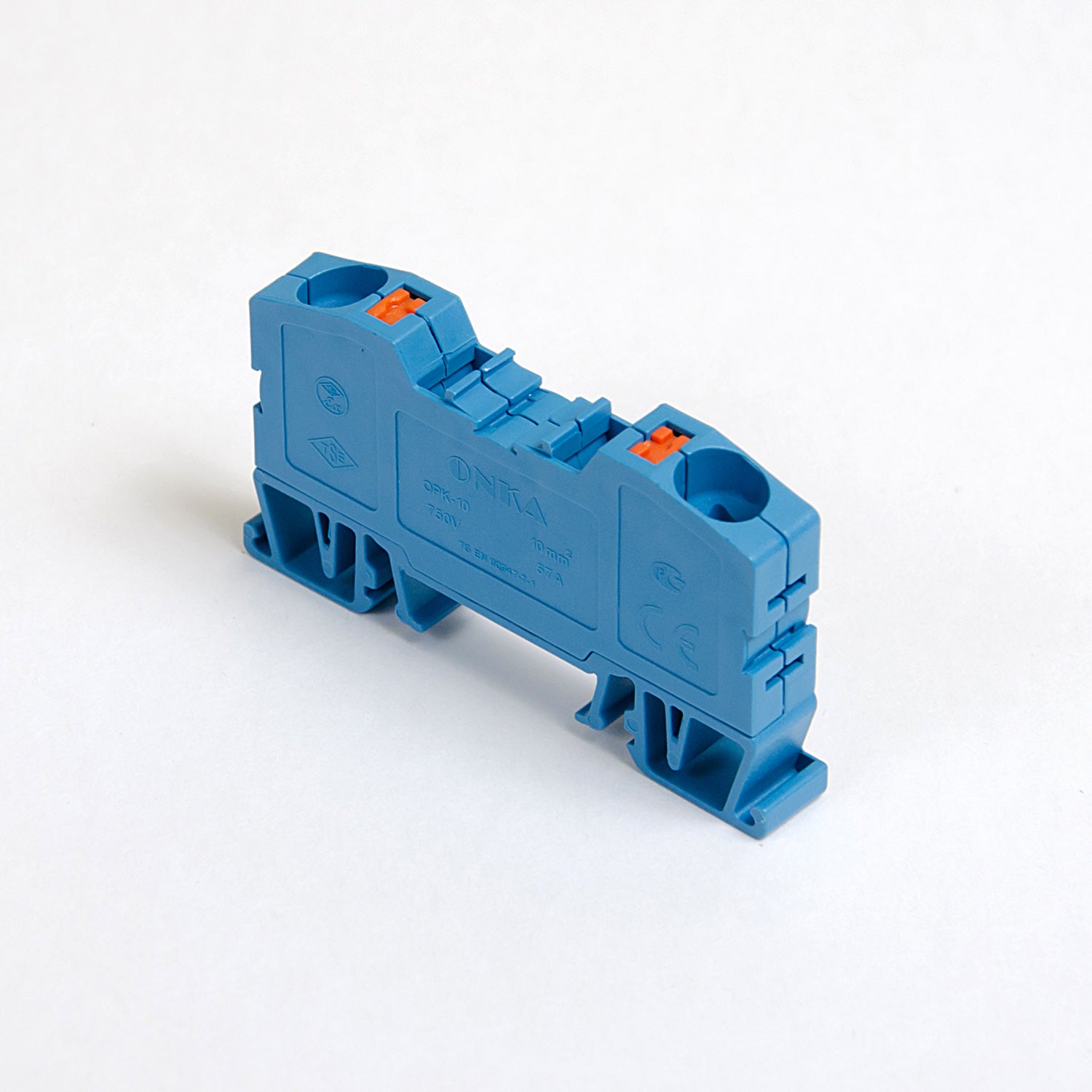

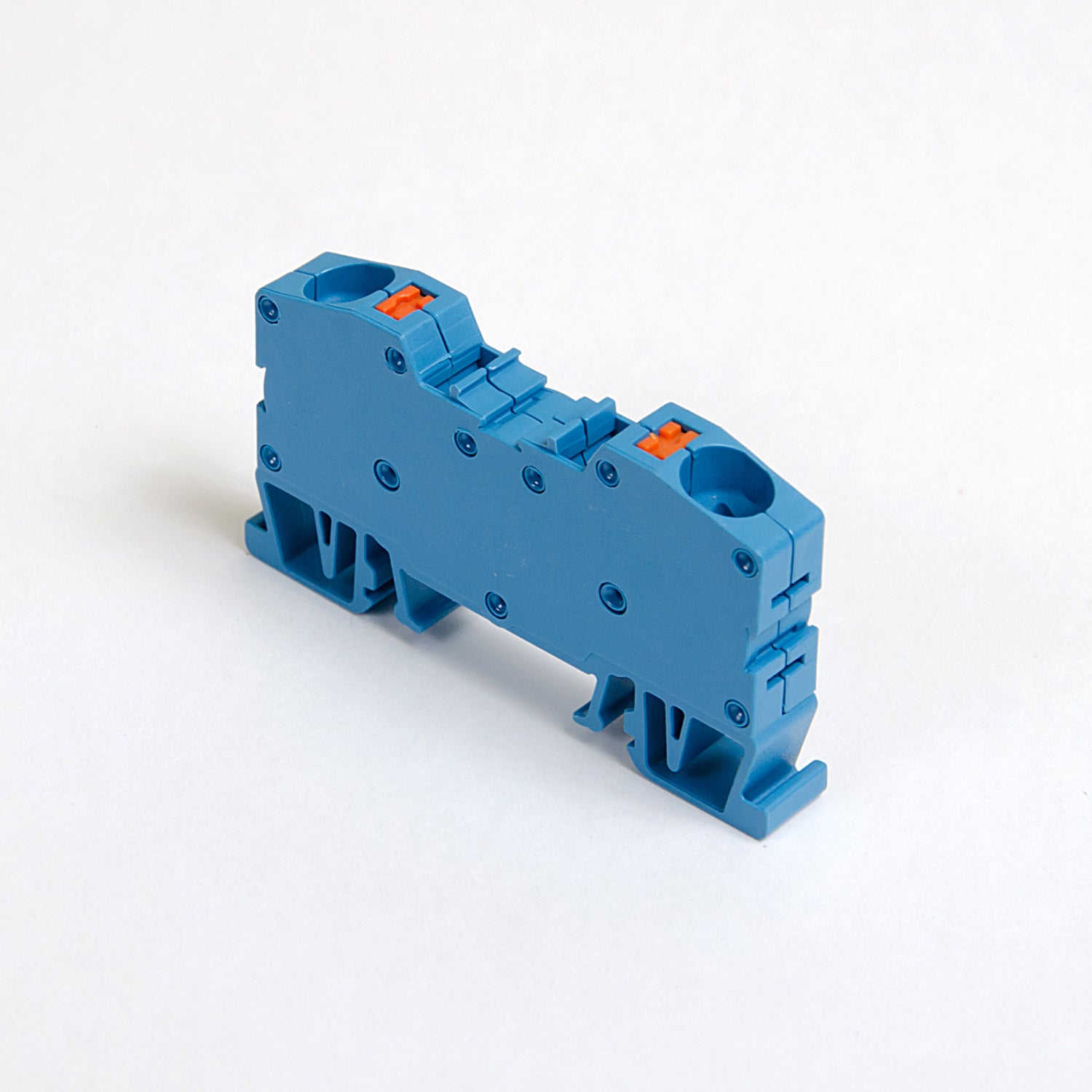

Spring-loaded busbar connector / DIN rail terminal 2 wires, removable contact, blue, ONKA, made in Turkey.

ONKA connector/terminal is a reliable solution for anyone looking for functional and durable electrical installation elements.
The connector, made of high-quality materials, ensures long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of one connected wire up to: 10 mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact and bridge material: stainless steel and copper
Connection position: top/top
Cable strip length: 12 mm
Electrical connection type: spring clamp/retractable contact
Rated voltage: 750 V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
