ONKA 1.5 mm2 Screw Rail Connection Terminal Block DIN Rail Terminal Block 2 Wires Blue, 1010005
- Regular price
- €0,52
- Regular price
-
- Sale price
- €0,52
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

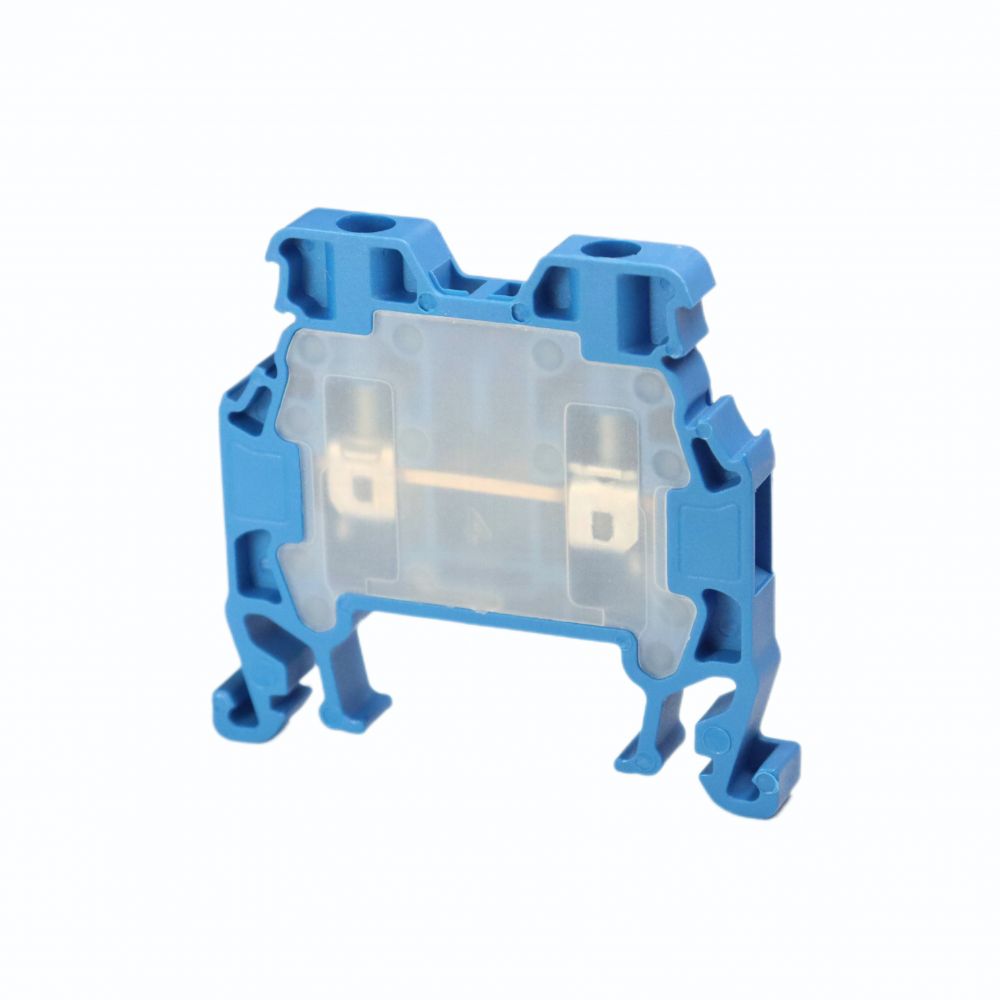

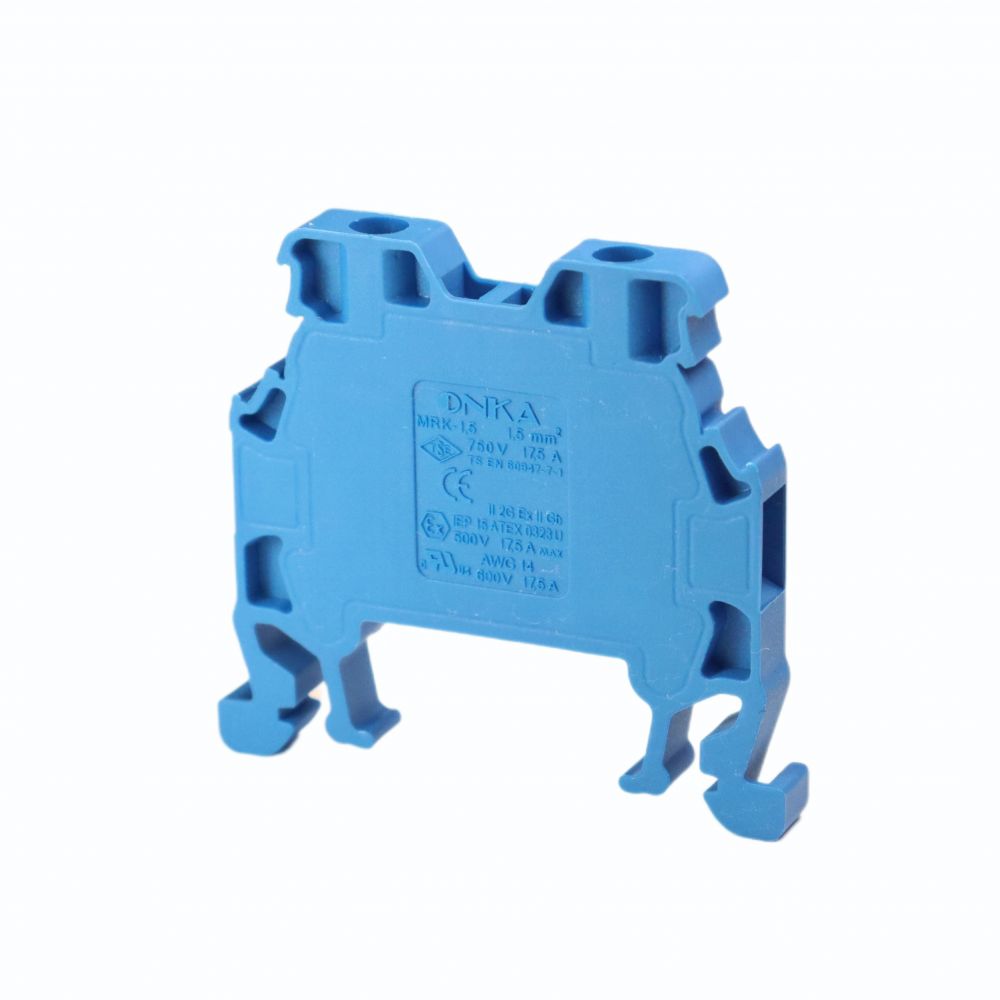

Threaded busbar connector / DIN busbar terminal 2 wires blue, ONKA, made in Turkey
ONKA connector/terminal block is a reliable solution for anyone looking for functional and durable electrical installation elements.
The connector, made of high-quality materials, ensures long-term use and resistance to mechanical damage.
Technical parameters
Cross-section of one connected wire up to: 1.5 mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact and bridge material: CK45 steel/copper
Torque: 0.4 Nm
Connection position: side/side
Cable strip length: 10 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 17.5 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
