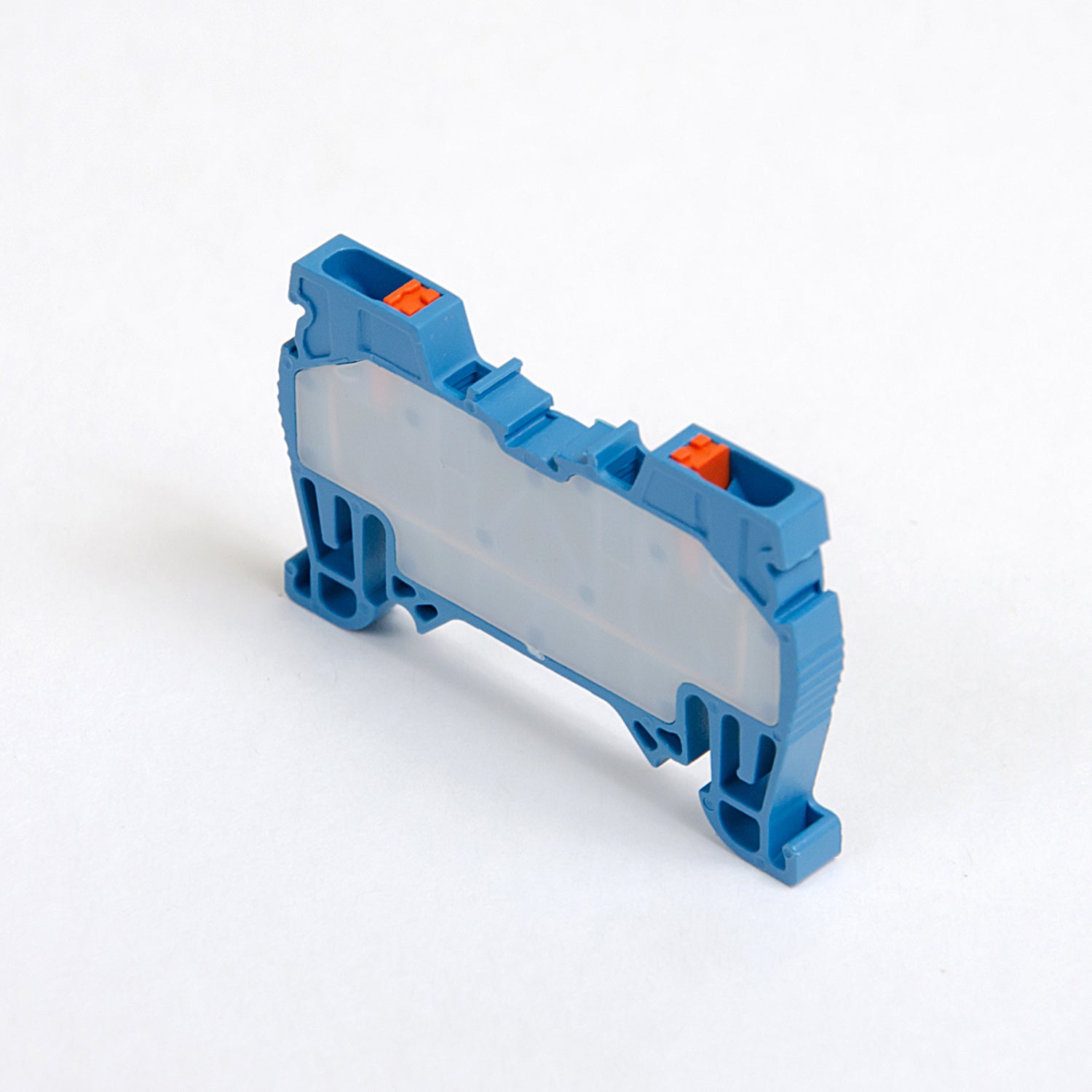

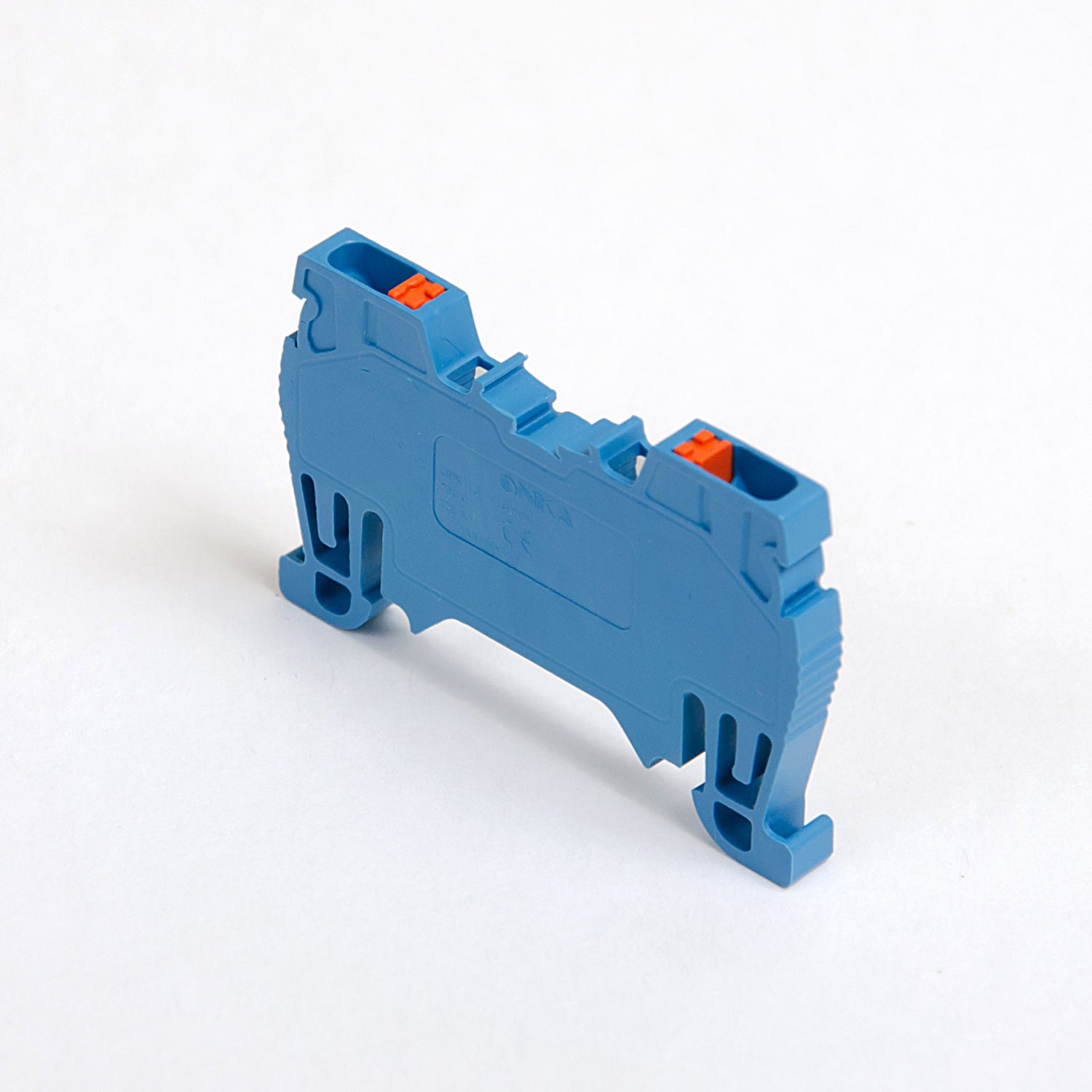

ONKA 1.5 mm2 spring-loaded rail connection terminal block DIN rail terminal block, 2 wires, blue, 1020005
- Regular price
- €0,64
- Regular price
-
- Sale price
- €0,64
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Spring-loaded busbar connector / DIN rail terminal 2 wires, removable contact, blue, ONKA, made in Turkey.
ONKA connector/terminal is a reliable solution for anyone looking for functional and durable electrical installation elements.
The connector, made of high-quality materials, ensures long-term use and resistance to mechanical damage.
Technical parameters
Cross-section of one connected wire up to: 1.5 mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact and bridge material: stainless steel and copper
Torque: 0.4 Nm
Connection position: top/top
Cable strip length: 9 mm
Electrical connection type: spring clamp/retractable contact
Rated voltage: 750 V
Rated current: 17.5 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
