TENSE

Microprocessor PID temperature controller for relay panel + SSR output up to 1750 °C

In stock - 11 items available
SKU: DT-48EM
€44,00 with VAT
option

Payment by card online - after completing your order, you will be directed to the payment gateway, payment confirmation will be sent to your email.

COD – you make the payment by money order to the driver of the transport company

By bank transfer - no later than the next business day, you will receive an advance invoice by e-mail, in which you will find the account number, which you will enter when making the payment.

By invoice – this payment option is available to partners who have signed a general agreement with our company.

​If you want to use the last 2 methods, call our manager and he will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, there is no fee for returning the goods.

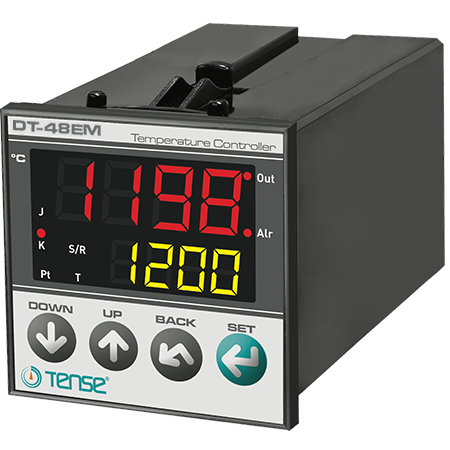

PID temperature controller for panel mounting, relay + SSR outputs, measuring range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation, and industrial equipment.

The temperature controller is implemented as an on/off or PID control. The controller offers self-optimization to avoid process overshoot.

  • Automatic tuning of PID parameters

  • Sensor type: T/C (J, K, T, S, R), Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF.

  • Automatic "excess" removal in PID mode

  • Anti-windup

  • OUT switch-on delay in cooling mode

  • Password protection

  • EEPROM memory for saving settings

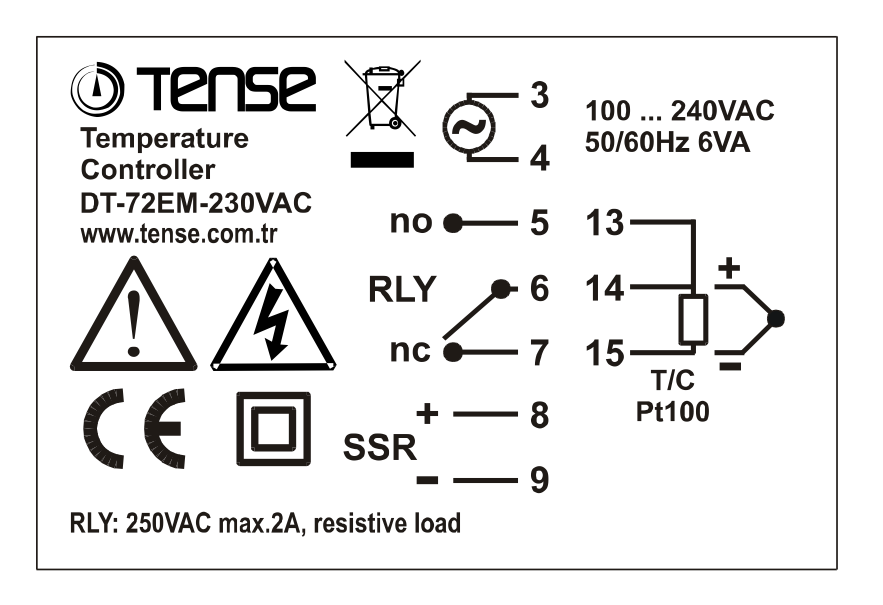

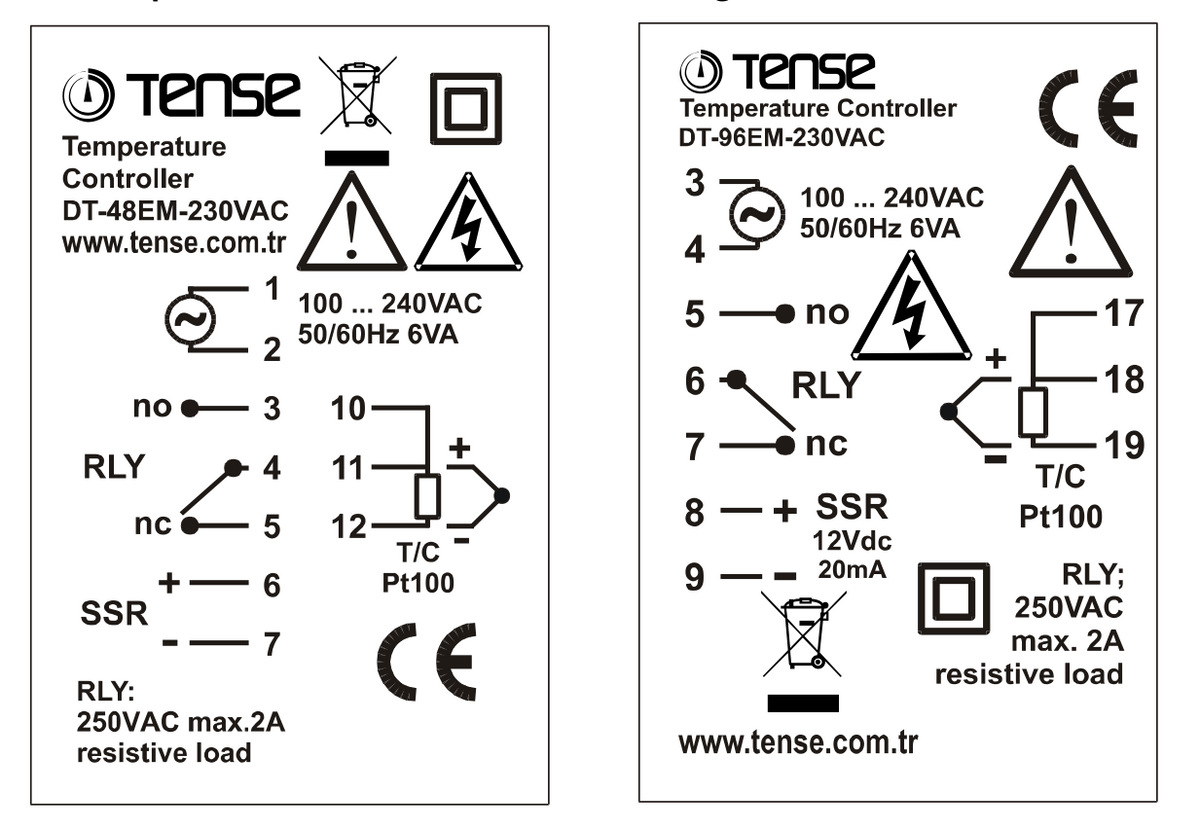

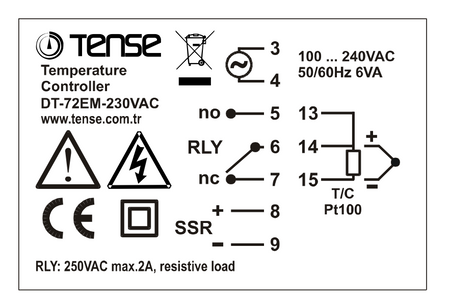

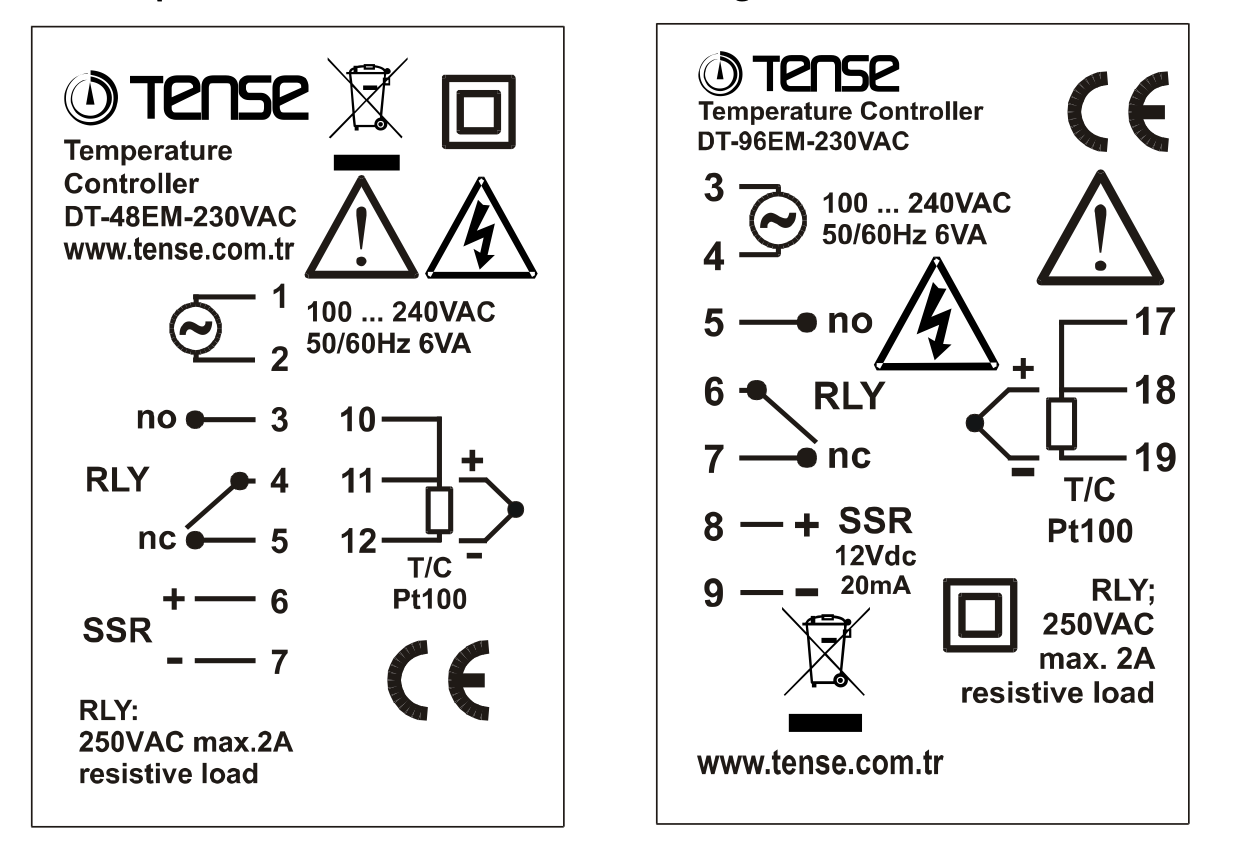

  • Relay outputs OUT (NO+NC) 250VAC, 2A/ SSR max 12Vdc, 20mA

The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

The temperature controller display features a high-contrast display that can only be read accurately under poor conditions.

Don't forget to order our temperature sensors - J type Fe-Const thermocouples (metric 6/8) with a temperature measurement scale: -100 °C - +600 °C. Available in 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m cable lengths.
