Water Level Control Relay for Single Tank with Heater Protection - Tense SSR-09

Product Description

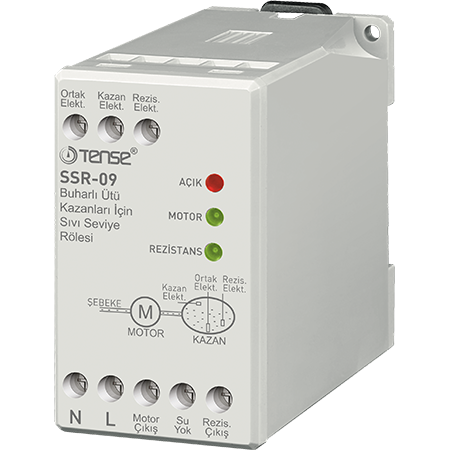

The Tense SSR-09 relay is a modern device designed for automatic water level control in boilers, storage tanks, and water heaters.
It ensures reliable water supply, timely pump shutdown, and most importantly, effective protection of the electric heating element from dry operation.

The device monitors the water level using capacitive electrodes and automatically controls the pump and heater based on the current situation in the tank.

Key Advantages

• Boiler and heater dry-run protection - extends equipment lifespan.

• Automatic water level control: the pump turns on when the water level is low and turns off when it reaches the upper level.

• Heater protection - if there is no water at the heater, the device immediately blocks its power supply.

• LED indication of pump and heater operation for easy status checking.

• Easy installation - mounts on DIN rail, clear screw terminals.

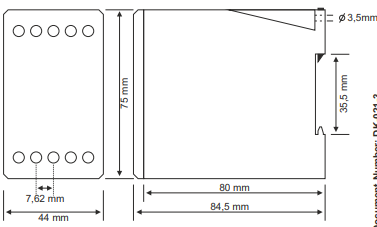

• Compact dimensions, low power consumption.

• Wide operating voltage range 170-260 V AC - stable operation even with power fluctuations.

Operating Principle

The SSR-09 operates with two electrodes in the tank:

1. Lower electrode (minimum level)

   • When the water level drops below this electrode, the relay turns on the pump and starts pumping water.

2. Upper electrode (max. level)

   • Once the upper level is reached, the relay automatically switches off the pump.

3. Safety electrode at the heating element

   • If there is no water at the heater, the relay switches off the heater's power supply, protecting it from overheating.

This smart logic ensures safe and economical operation of the entire system.

Applications

• Electric boilers and storage water heaters

• Heating systems with a storage tank

• Domestic and industrial water tanks

• Water supply and pumping systems

• Drinking or domestic water tanks

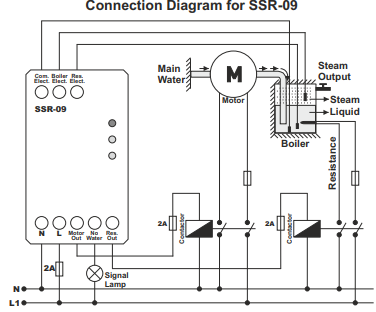

Installation and Connection

• Mounting on a standard DIN rail in a cabinet.

• Connection via screw terminals.

• The electrodes must be installed in the tank at the required level.

• For stable operation, the manufacturer recommends using conductors no less than 2.5 mm².

Note: Electrodes (level probes) are not included in the kit and must be ordered separately.
