Vendor: TENSE

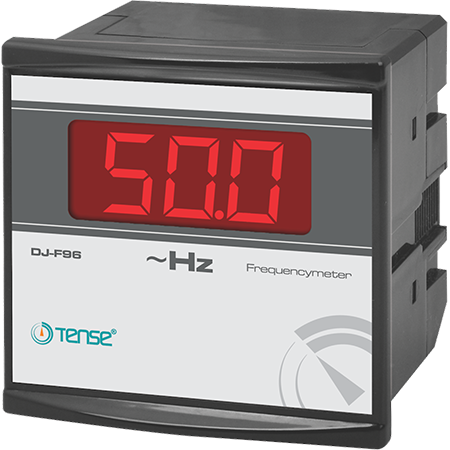

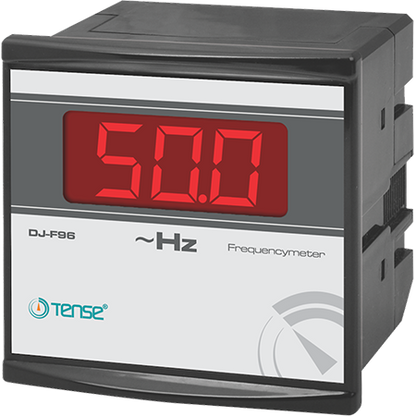

Frequency counter / frequency counter / frequency meter panel digital built-in 1-400 Hz

Barcode: DJ-F96
Regular price
€36,00
Regular price
Sale price
€36,00
excl. VAT: €30
Low stock: 7 left
option: 97mm x 97mm
  • Description
  • Instructions
  • Payment methods
  • Warranty

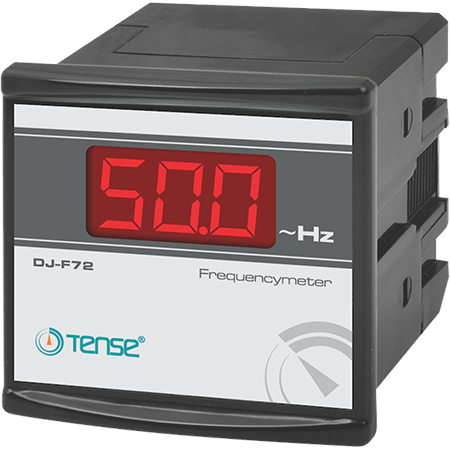

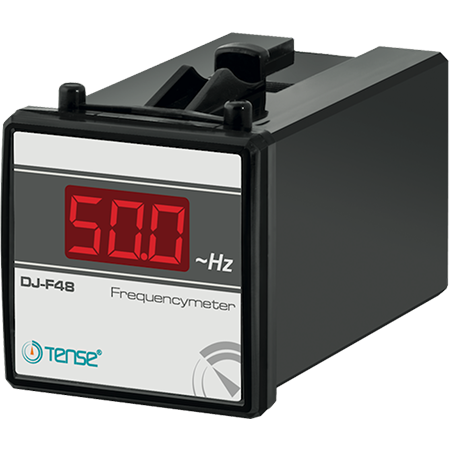

Skaitmeninis dažnio matuoklis TENSE DJ-F72, DJ-F96, DJ-F48

Aprašymas

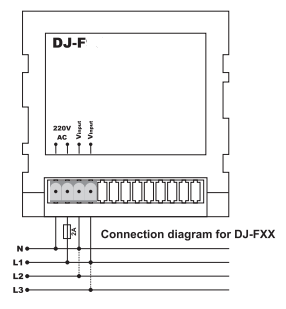

Skaitmeniniai dažnio matuokliai TENSE DJ-F72, DJ-F96, DJ-F48 skirti nuolatiniam kintamosios srovės (AC) dažnio stebėjimui. Prijungus maitinimą, prietaisas skaitmeniniame ekrane rodo fazės arba linijos įtampos, paduodamos į Vin įvadus, dažnį. Išmatuota įtampa turi būti 15-500 V kintamosios srovės diapazone.

Privalumai

  • Nuolatinis dažnio stebėjimas

  • Tikslus skaitmeninis matavimas ±1 % tikslumu

  • Lengvas montavimas priekiniame skydelyje

  • Mažos energijos sąnaudos (<6 VA)

  • Kompaktiškas ir patikimas veikimas net iki 2000 m aukštyje

Techninės specifikacijos

ParametrasVertė
Darbinė įtampa (Un)140-260 V KINTAMOSIOS SROVĖS ĮTAMPA
Darbinis dažnis50/60 Hz
Energijos suvartojimas<6 VA
Dažnio matavimo diapazonas1 - 400 Hz (įtampa 15-500 V AC)
Matavimo tikslumas±1 %
Darbinė temperatūra0 °C - 55 °C
Apsaugos klasėIP20
Prijungimo tipasGnybtų bloko jungtis
Maksimalus kabelio skersmuo1,5 mm²
Svoris<220 g
Darbinis aukštis<2000 m

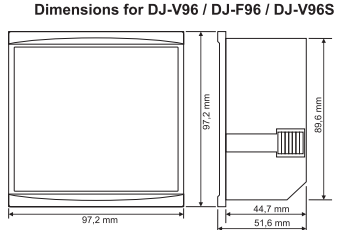

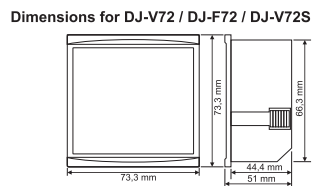

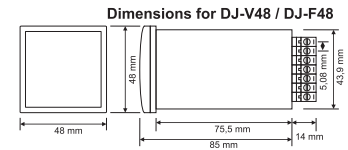

ModelisEkrano dydisMontavimo skylės dydis
DJ-F9620 mm, 3 skaitmenų91 x 91 mm
DJ-F7214 mm, 3 skaitmenų68 x 68 mm
DJ-F489 mm, 3 skaitmenų45 x 45 mm


Montavimas

  • Priekinio skydelio montavimas

  • Tinka pramoninėms ir buitinėms elektros energijos sistemoms

Download

User manual
