Bistable memory relay/start-stop relay, pulse pulse/impulse switch

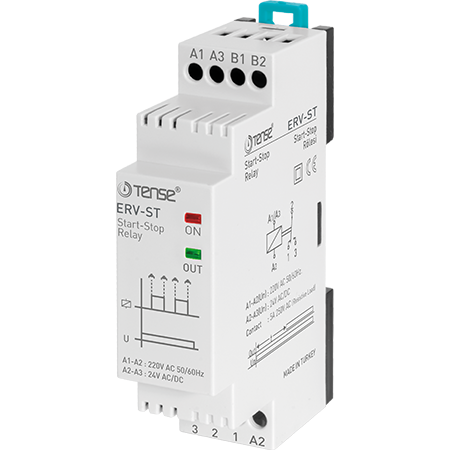

Bistable electronic pulse relay / start-stop relay, memory relay, pulse / pulse switch mounting strip with 1 changeover contact, 150V - 260V AC 50/60Hz TENSE (Turkey)

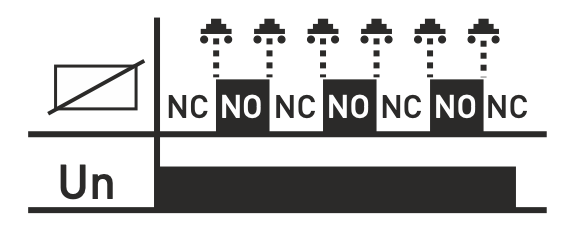

A bistable electronic pulse relay allows you to turn on or off lighting or other equipment from several different points using parallel-connected momentary (bell) control switches.

An important difference of this relay from competitors is its safer use. It is not necessary to supply 220/230 V voltage to the relay inputs via the button - it is enough to short-circuit the button contacts. This eliminates the risk of electric shock to the user when pressing the button.

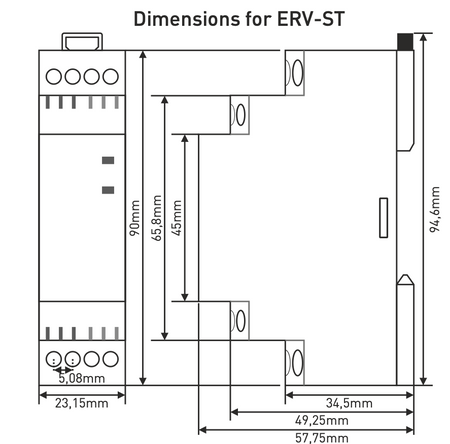

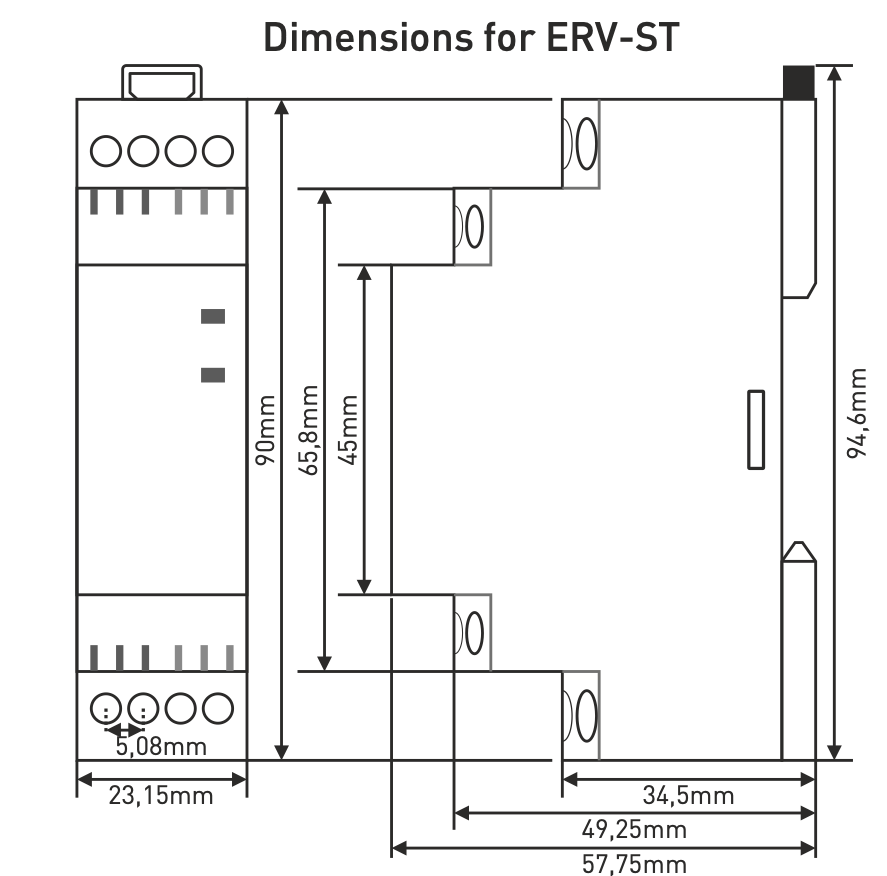

For electrical impulse/push-button switching, used in conjunction with any number of buttons. Dimensions 1 modular unit

The ability to connect multiple buttons connected in parallel via two wires allows for the replacement of cross-connectors and simplifies cable routing.

The pulse relay is mounted on a standard 35 mm DIN rail
