Relay interface with mounting block - 6 A, 12-24 V AC/DC, NO+NC (HF-41F)

Product description

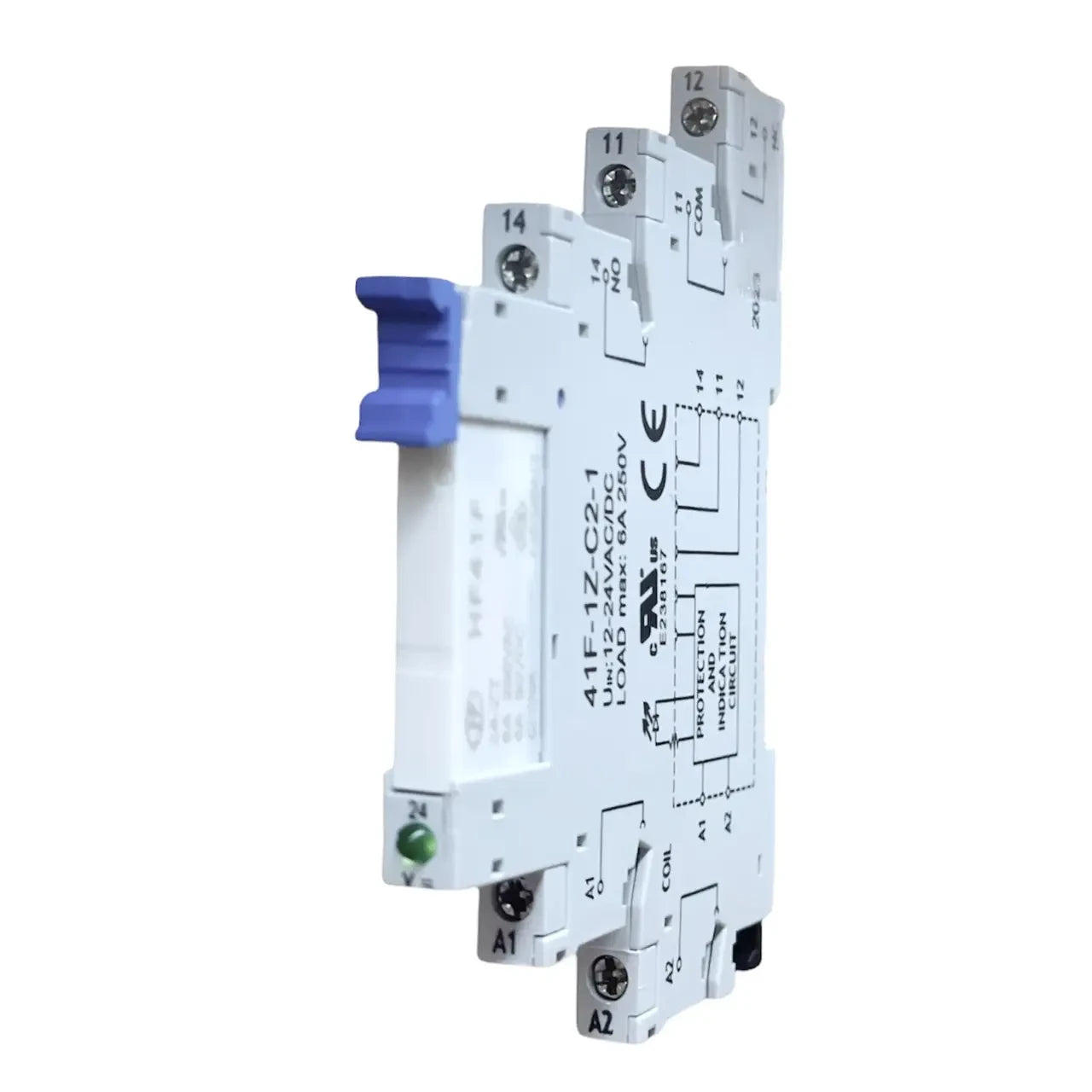

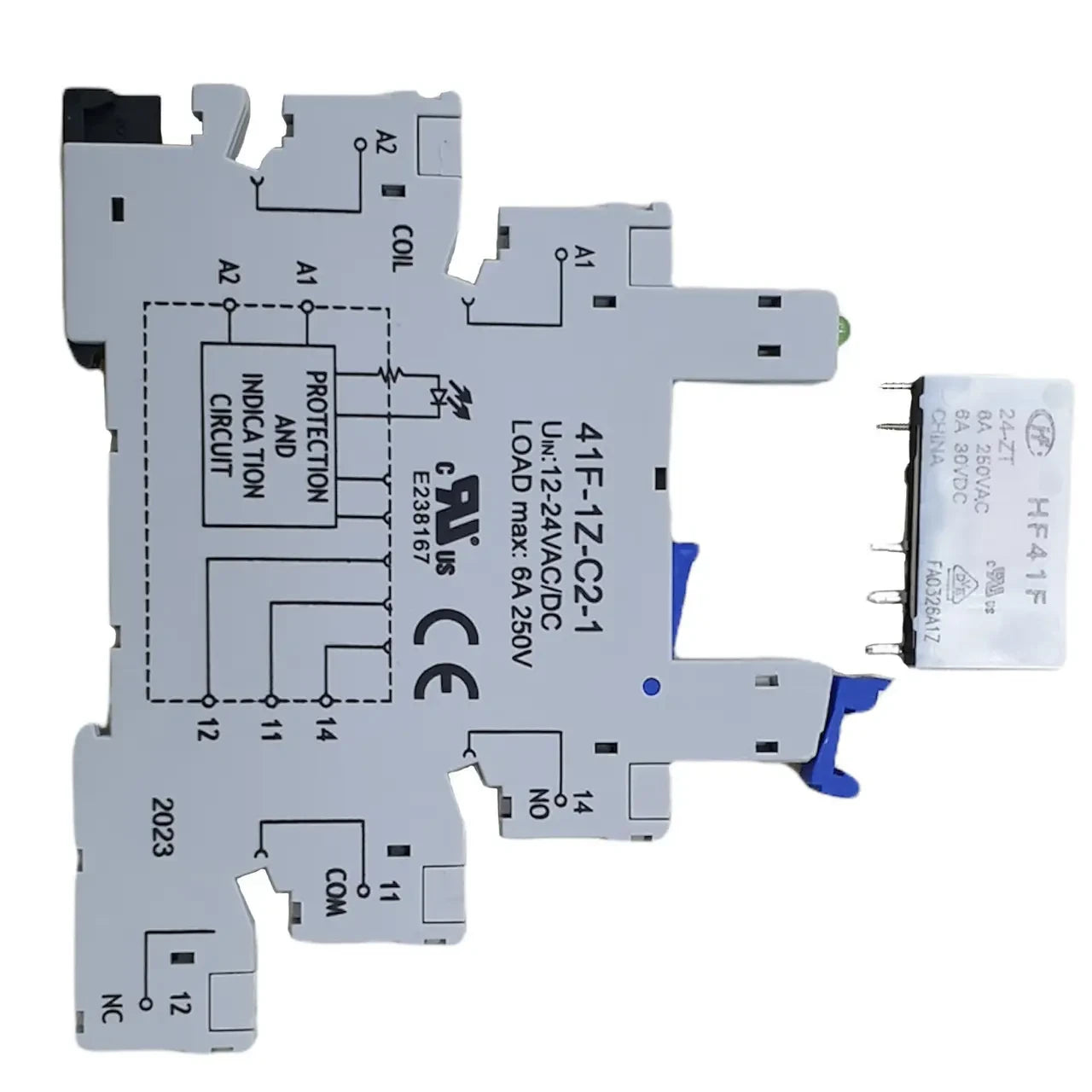

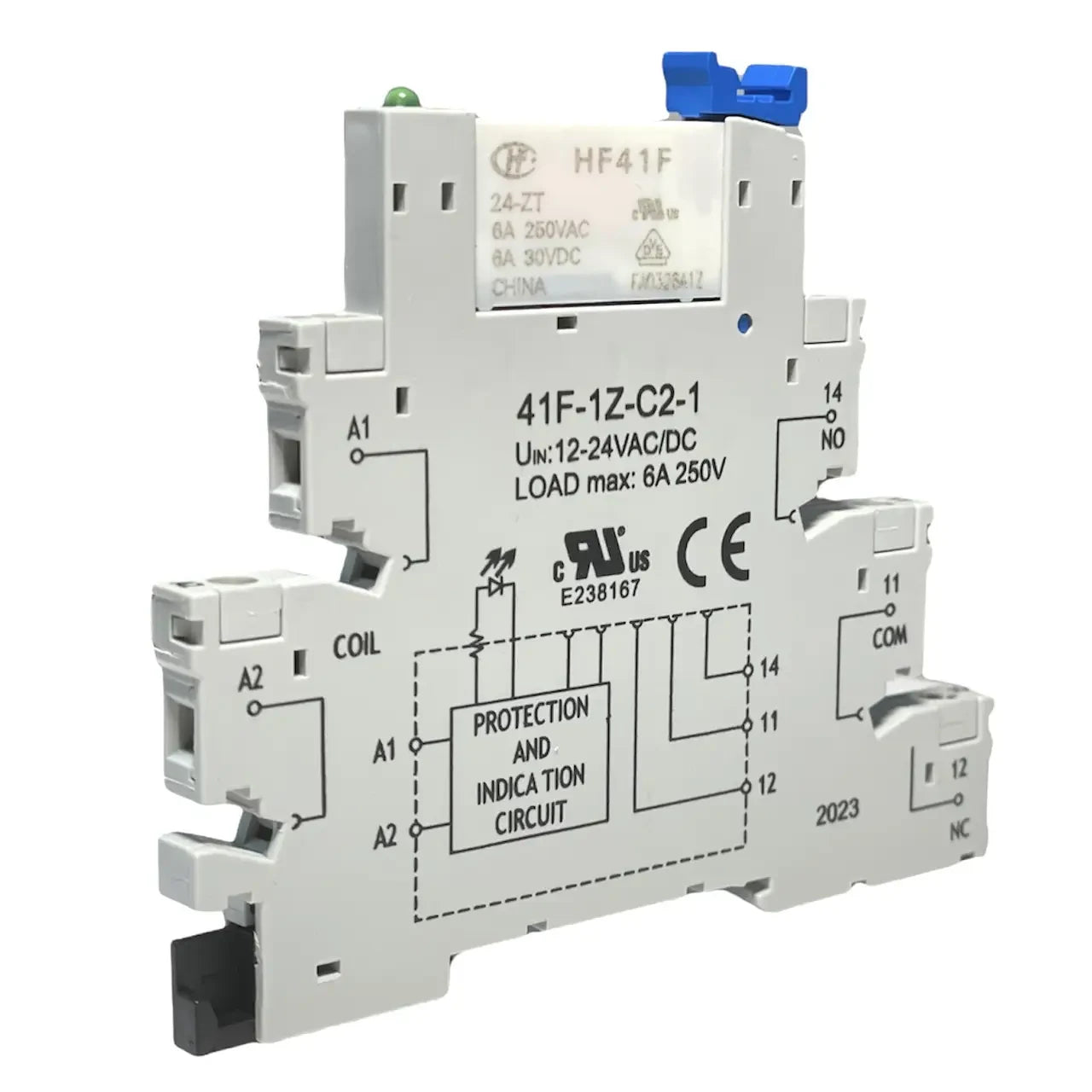

The HF-41F relay interface consists of the 41F-1Z-C2-1 base module and a plug-in miniature relay HF41F/24-ZT with power contacts.
Used for galvanic isolation, amplification of control signals from PLCs, control systems or sensors, and to increase the switching capacity of output circuits.

The modular design allows for quick relay replacement without disassembling the entire module – ideal for industrial applications, automation and control cabinets.

Features and benefits

• Galvanic isolation of control and power circuits

• Increased switching capacity for PLC output signals

• DIN rail mounting (standard 35 mm)

• Quick relay replacement - plug-in design without disassembling the entire module

• Space-saving, with a width of only 6 mm

• LED status indication (green light for relay engagement)

• Suitable for AC / DC 12-24 V input voltage

Technical parameters

• Input voltage: 12-24 V AC/DC

• Contact rated operating voltage:

  • AC: 250 V

  • DC: 30 V

• Rated current: 6 A

• Contact type: NO + NC (1 changeover contact)

• Indication: green LED

• Operating temperature: -20...+55 °C

• Degree of protection: IP20

• Module width: 6 mm

• Design: base + plug-in relay HF41F

Application

• Automation and industrial control

• Low current PLC outputs

• Separation of signal and power circuits

• Control of contactors, valves, motors, alarms

• Installation in enclosures with high component density
