3-phase network analyzer / network analyzer / network parameter meter - multi-function digital panel meter, current, voltage, frequency and total power indicator, with two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH manufacturer TENSE (Turkey)
Multifunctional power network analyzer for accurate measurement of three-phase network parameters
Power network analyzers are designed to measure and monitor electrical values. With the communication function, energy measurements can be independently monitored and reported
Main advantages:
- RS485 Modbus RTU (1200-38400bps)

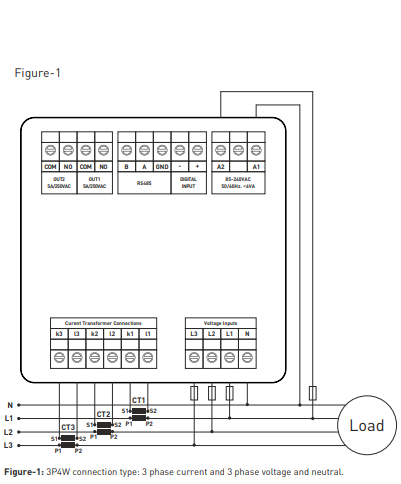

- 3-phase voltage transformer and 3-phase current transformer.
Displays voltage and current harmonics up to the 31st harmonic
Displays the active power (P) of each phase
Displays the reactive power (Q, inductive and capacitive) of each phase
Shows apparent power in phase (S)
-
Displays Cosφ and power factor values for each phase
Displays the values of phase and neutral phase, phase voltage (V) and current (I) for each phase, and measures frequency.
Shows total active energy import and export values (ΣkWh)
Displays the total value of inductive and capacitive reactive energy (ΣkVArh)
Minimum and maximum values are displayed, maximum demand
2 relay outputs, 1 digital input
Event logs (high/low voltage/current, voltage/current imbalance, THD-I)
The menu is password protected.
Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or the like. You can purchase such transformers in our e-shop. If you intend to connect the analyzer to the ModBus bus, upon request we will send you a register table with ModBus addresses.
